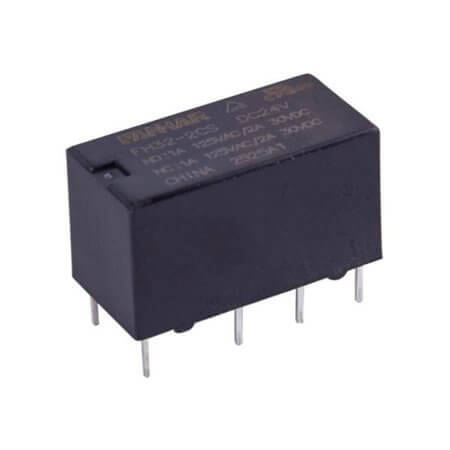

FH32-2CS-DC24V RELAY 2A 24VDC 2PNC TELECOM TYPE FANHAR

FH32-2CS-DC24V RELAY 2A 24VDC 2PNC TELECOM TYPE FANHAR Description

FH32-2CS-DC24V RELAY 2A 24VDC 2PNC TELECOM TYPE FANHAR FH32-2CS-DC24V is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 277VAC/30VDC and coil resistance of 2.88K Ohms. Features a coil power of 200mW and operates within a temperature range of -40°C~+85°C.Compact design with dimensions: length 20.20mm, width 10.00mm, and height 11.50mm.Manufactured by FANHAR and compliant with ROHS standards. Packaged as TRAY for convenience.

FH32-2CS-DC24V RELAY 2A 24VDC 2PNC TELECOM TYPE FANHAR Technical Specifications

• Manufacturer: FANHAR
• RelayType: Relay Telecom
• Series: FH32
• MountingType: THT
• ContactForm: DPDT (2 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 1A
• ContactCurrent(Max): 2A
• CoilVoltage: 24VDC
• CoilCurrent: 8.30mA
• ContactVoltage: 277VAC/30VDC
• CoilResistance: 2.88K Ohms
• CoilPower: 200mW
• OperatingTemperature: -40°C~+85°C
• NumberofPins: 8 Pin
• Length: 20.20mm
• Width: 10.00mm
• Height: 11.50mm
• Rohs: ROHS
• Packaging: TRAY

---

You can click for product datasheet.
