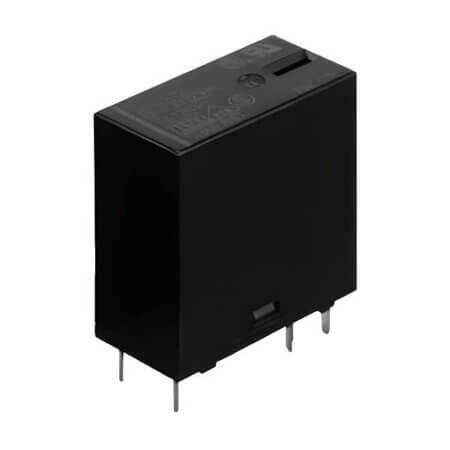

ALA2PF24 RELAY 5A 24V 2PNC PANASONIC

ALA2PF24 RELAY 5A 24V 2PNC PANASONIC Description

ALA2PF24 RELAY 5A 24V 2PNC PANASONIC ALA2PF24 is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 250VAC and coil resistance of 1.09K Ohms. Features a coil power of 530mW and operates within a temperature range of -40°C~+70°C.Compact design with dimensions: length 24.00mm, width 12.00mm, and height 25.00mm.Manufactured by PANASONIC COMP. and compliant with ROHS standards. Packaged as TRAY for convenience.

ALA2PF24 RELAY 5A 24V 2PNC PANASONIC Technical Specifications

• Manufacturer: PANASONIC COMP.
• RelayType: Relay Power
• Series: ALA
• MountingType: THT
• ContactForm: DPST-NO (2 Form A)
• CoilType: Non Latching
• ContactCurrent(Nom): 5A
• ContactCurrent(Max):
• CoilVoltage: 24VDC
• CoilCurrent: 22.10mA
• ContactVoltage: 250VAC
• CoilResistance: 1.09K Ohms
• CoilPower: 530mW
• OperatingTemperature: -40°C~+70°C
• NumberofPins: 6 Pin
• Length: 24.00mm
• Width: 12.00mm
• Height: 25.00mm
• Rohs: ROHS
• Packaging: TRAY

---

You can click for product datasheet.
