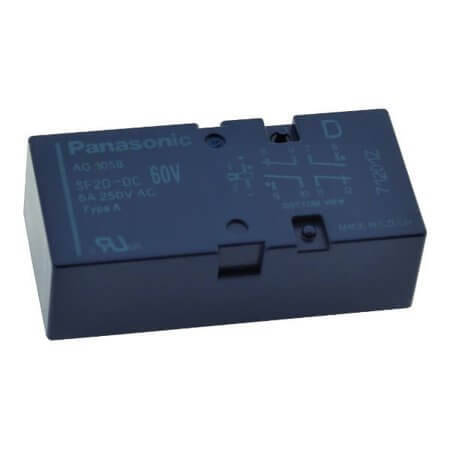

SF2D-DC24V RELAY 6A 24VDC 2PNC

SF2D-DC24V RELAY 6A 24VDC 2PNC Description

SF2D-DC24V RELAY 6A 24VDC 2PNC SF2D-DC24V is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 250VAC/30VDC and coil resistance of 1.15K Ohms. Features a coil power of 500mW and operates within a temperature range of -40°C~+70°C.Compact design with dimensions: length 53.30mm, width 25.00mm, and height 16.00mm.Manufactured by PANASONIC COMP. and compliant with ROHS standards. Packaged as BULK for convenience.

SF2D-DC24V RELAY 6A 24VDC 2PNC Technical Specifications

• Manufacturer: PANASONIC COMP.
• RelayType: Relay Safety
• Series: SF
• MountingType: THT
• ContactForm: 4PST-NO/NC (2 Form A/2 Form B)
• CoilType: Non Latching
• ContactCurrent(Nom): 6A
• ContactCurrent(Max):
• CoilVoltage: 24VDC
• CoilCurrent: 20.80mA
• ContactVoltage: 250VAC/30VDC
• CoilResistance: 1.15K Ohms
• CoilPower: 500mW
• OperatingTemperature: -40°C~+70°C
• NumberofPins: 10 Pin
• Length: 53.30mm
• Width: 25.00mm
• Height: 16.00mm
• Rohs: ROHS
• Packaging: BULK

---

You can click for product datasheet.
