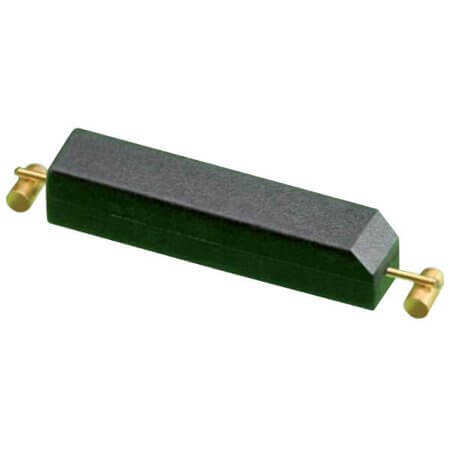

PMC-1001THY SWITCH REED SPST-NC 10W 10-50AT SMT

PMC-1001THY SWITCH REED SPST-NC 10W 10-50AT SMT Description

PMC-1001THY SWITCH REED SPST-NC 10W 10-50AT SMT The PMC-1001THY, manufactured by PIC GMBH, is a high-performance reed switch designed for switch reed spst-nc 10w 10-50at smt. It features a spst-nc circuit with an operate range of 10-50AT, ensuring precise operation. The switch has a power rating of 10W. It supports an AC rating of 130V(Max) and a DC rating of 180V(Max), with a switching current of 700mA(Max) (AC) and 700mA(Max) (DC). The device operates reliably within a temperature range of -40°C~+125°C. As a rohs-compliant product, it meets stringent environmental and safety standards. Packaged in tape&reel format, it ensures secure handling and storage. With its robust design and advanced features, the PMC-1001THY is an excellent choice for professionals seeking reliable reed switch solutions.

PMC-1001THY SWITCH REED SPST-NC 10W 10-50AT SMT Technical Specifications

• Manufacturer: PIC GMBH
• Series:
• MountingType: SMT
• Circuit: SPST-NC
• OperateRange: 10-50AT
• Power: 10W
• SwitchRating(AC): 130V(Max)
• SwitchRating(DC): 180V(Max)
• SwitchingCurrent(AC): 700mA(Max)
• SwitchingCurrent(DC): 700mA(Max)
• OperatingTemperature: -40°C~+125°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
