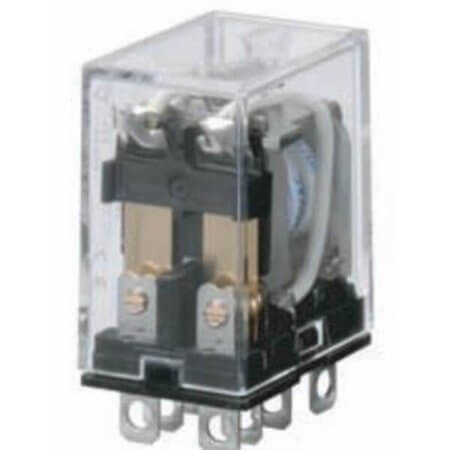

LY1-DC24 RELAY POWER GEN PURPOSE15A 24V SPDT

LY1-DC24 RELAY POWER GEN PURPOSE15A 24V SPDT Description

LY1-DC24 RELAY POWER GEN PURPOSE15A 24V SPDT LY1-DC24 is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 380VAC/125VDC - Max and coil resistance of 650 Ohms. Features a coil power of nan and operates within a temperature range of -25°C~+55°C.Compact design with dimensions: length 28.00mm, width 21.50mm, and height 36.00mm.Manufactured by OMRON and compliant with ROHS standards. Packaged as BULK for convenience.

LY1-DC24 RELAY POWER GEN PURPOSE15A 24V SPDT Technical Specifications

• Manufacturer: OMRON
• RelayType: Relay General
• Series: LY
• MountingType: Socket
• ContactForm: SPDT (1 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 15A
• ContactCurrent(Max):
• CoilVoltage: 24VDC
• CoilCurrent: 36.90mA
• ContactVoltage: 380VAC/125VDC - Max
• CoilResistance: 650 Ohms
• CoilPower:
• OperatingTemperature: -25°C~+55°C
• NumberofPins: 8 Pin
• Length: 28.00mm
• Width: 21.50mm
• Height: 36.00mm
• Rohs: ROHS
• Packaging: BULK

---

You can click for product datasheet.
