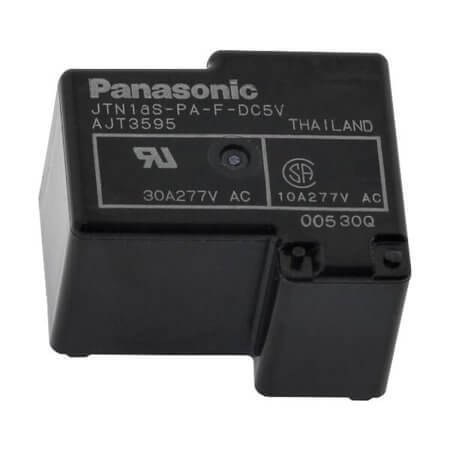

JTN1AS-PA-F-DC5V RELAY POWER 30A 5VDC FormA PCB TYPE

JTN1AS-PA-F-DC5V RELAY POWER 30A 5VDC FormA PCB TYPE Description

JTN1AS-PA-F-DC5V RELAY POWER 30A 5VDC FormA PCB TYPE JTN1AS-PA-F-DC5V is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 277VAC and coil resistance of 31 Ohms. Features a coil power of 800mW and operates within a temperature range of -55°C~+85°C.Compact design with dimensions: length 31.90mm, width 26.90mm, and height 20.20mm.Manufactured by PANASONIC COMP. and compliant with ROHS standards. Packaged as TRAY for convenience.

JTN1AS-PA-F-DC5V RELAY POWER 30A 5VDC FormA PCB TYPE Technical Specifications

• Manufacturer: PANASONIC COMP.
• RelayType: Relay Power
• Series: JTN
• MountingType: THT
• ContactForm: SPST-NO (1 Form A)
• CoilType: Non Latching
• ContactCurrent(Nom): 20A
• ContactCurrent(Max):
• CoilVoltage: 5VDC
• CoilCurrent: 161mA
• ContactVoltage: 277VAC
• CoilResistance: 31 Ohms
• CoilPower: 800mW
• OperatingTemperature: -55°C~+85°C
• NumberofPins: 4 Pin
• Length: 31.90mm
• Width: 26.90mm
• Height: 20.20mm
• Rohs: ROHS
• Packaging: TRAY

---

You can click for product datasheet.
