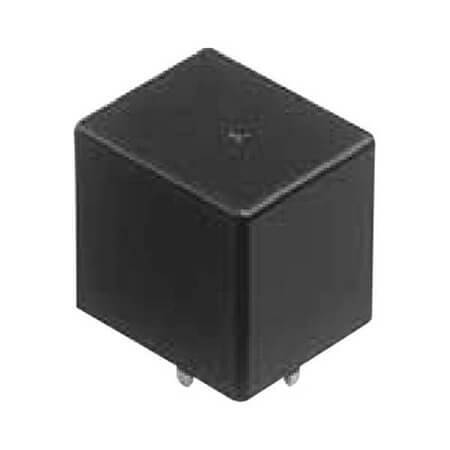

CB1A-T-P-12V RELAY AUTOMOTIVE SPST 40A 12V

CB1A-T-P-12V RELAY AUTOMOTIVE SPST 40A 12V Description

CB1A-T-P-12V RELAY AUTOMOTIVE SPST 40A 12V CB1A-T-P-12V is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 14VDC and coil resistance of 103 Ohms. Features a coil power of 1.40W and operates within a temperature range of -40°C~+85°C.Compact design with dimensions: length 26.00mm, width 22.00mm, and height 25.00mm.Manufactured by PANASONIC COMP. and compliant with ROHS standards. Packaged as BULK for convenience.

CB1A-T-P-12V RELAY AUTOMOTIVE SPST 40A 12V Technical Specifications

• Manufacturer: PANASONIC COMP.
• RelayType: Relay Automotive
• Series: CB
• MountingType: THT
• ContactForm: SPST-NO (1 Form A)
• CoilType: Non Latching
• ContactCurrent(Nom): 40A
• ContactCurrent(Max):
• CoilVoltage: 12VDC
• CoilCurrent: 117mA
• ContactVoltage: 14VDC
• CoilResistance: 103 Ohms
• CoilPower: 1.40W
• OperatingTemperature: -40°C~+85°C
• NumberofPins: 4 Pin
• Length: 26.00mm
• Width: 22.00mm
• Height: 25.00mm
• Rohs: ROHS
• Packaging: BULK

---

You can click for product datasheet.
