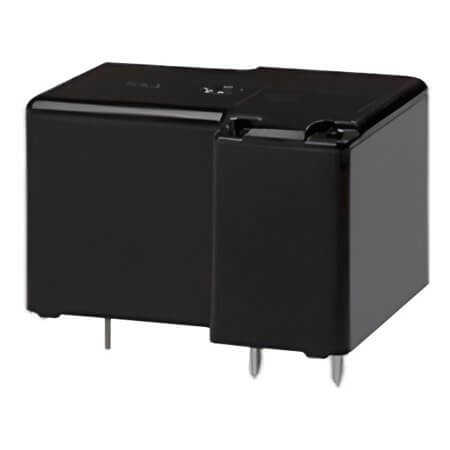

JTN1S-PA-F-DC12V RELAY POWER 20A 12VDC FormC PCB TYPE PANASONIC

JTN1S-PA-F-DC12V RELAY POWER 20A 12VDC FormC PCB TYPE PANASONIC Description

JTN1S-PA-F-DC12V RELAY POWER 20A 12VDC FormC PCB TYPE PANASONIC JTN1S-PA-F-DC12V is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 277VAC - Max and coil resistance of 180 Ohms. Features a coil power of 800mW and operates within a temperature range of -55°C~+85°C.Compact design with dimensions: length 31.90mm, width 26.90mm, and height 20.20mm.Manufactured by PANASONIC COMP. and compliant with ROHS standards. Packaged as BULK for convenience.

JTN1S-PA-F-DC12V RELAY POWER 20A 12VDC FormC PCB TYPE PANASONIC Technical Specifications

• Manufacturer: PANASONIC COMP.
• RelayType: Relay Power
• Series: JTN
• MountingType: THT
• ContactForm: SPDT (1 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 20A
• ContactCurrent(Max):
• CoilVoltage: 12VDC
• CoilCurrent: 66.70mA
• ContactVoltage: 277VAC - Max
• CoilResistance: 180 Ohms
• CoilPower: 800mW
• OperatingTemperature: -55°C~+85°C
• NumberofPins: 5 Pin
• Length: 31.90mm
• Width: 26.90mm
• Height: 20.20mm
• Rohs: ROHS
• Packaging: BULK

---

You can click for product datasheet.
