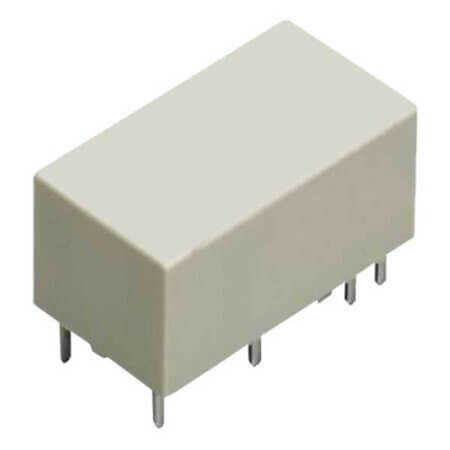

DSP1A-L2-DC12V-R RELAY 8A 12VDC 1 FORM A 250VAC

DSP1A-L2-DC12V-R RELAY 8A 12VDC 1 FORM A 250VAC Description

DSP1A-L2-DC12V-R RELAY 8A 12VDC 1 FORM A 250VAC DSP1A-L2-DC12V-R is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 250VAC/30VDC and coil resistance of 480 Ohms. Features a coil power of 300mW and operates within a temperature range of -40°C~+60°C.Compact design with dimensions: length 20.20mm, width 11.00mm, and height 10.00mm.Manufactured by PANASONIC COMP. and compliant with ROHS standards. Packaged as TRAY for convenience.

DSP1A-L2-DC12V-R RELAY 8A 12VDC 1 FORM A 250VAC Technical Specifications

• Manufacturer: PANASONIC COMP.
• RelayType: Relay Power Polarized
• Series: DSP
• MountingType: THT
• ContactForm: SPST-NO (1 Form A)
• CoilType: Latching, Dual Coil
• ContactCurrent(Nom): 8A
• ContactCurrent(Max):
• CoilVoltage: 12VDC
• CoilCurrent: 25mA
• ContactVoltage: 250VAC/30VDC
• CoilResistance: 480 Ohms
• CoilPower: 300mW
• OperatingTemperature: -40°C~+60°C
• NumberofPins: 6 Pin
• Length: 20.20mm
• Width: 11.00mm
• Height: 10.00mm
• Rohs: ROHS
• Packaging: TRAY

---

You can click for product datasheet.
