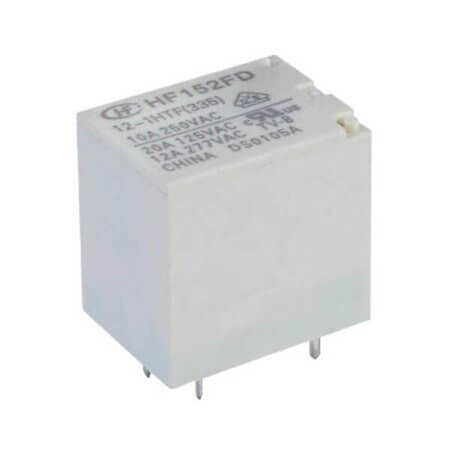

HF152FD/012-1HS RELAY 20A 12VDC HONGFA

HF152FD/012-1HS RELAY 20A 12VDC HONGFA Description

HF152FD/012-1HS RELAY 20A 12VDC HONGFA HF152FD/012-1HS is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 400VAC - Max and coil resistance of 400 Ohms. Features a coil power of 360mW and operates within a temperature range of nan.Compact design with dimensions: length 21.20mm, width 16.00mm, and height 20.60mm.Manufactured by HONGFA and compliant with ROHS standards. Packaged as TRAY for convenience.

HF152FD/012-1HS RELAY 20A 12VDC HONGFA Technical Specifications

• Manufacturer: HONGFA
• RelayType: Relay Power
• Series: HF152FD
• MountingType: THT
• ContactForm: SPST-NO (1 Form A)
• CoilType: Non Latching
• ContactCurrent(Nom): 17A
• ContactCurrent(Max): 20A
• CoilVoltage: 12VDC
• CoilCurrent:
• ContactVoltage: 400VAC - Max
• CoilResistance: 400 Ohms
• CoilPower: 360mW
• OperatingTemperature:
• NumberofPins: 4 Pin
• Length: 21.20mm
• Width: 16.00mm
• Height: 20.60mm
• Rohs: ROHS
• Packaging: TRAY

---

You can click for product datasheet.
