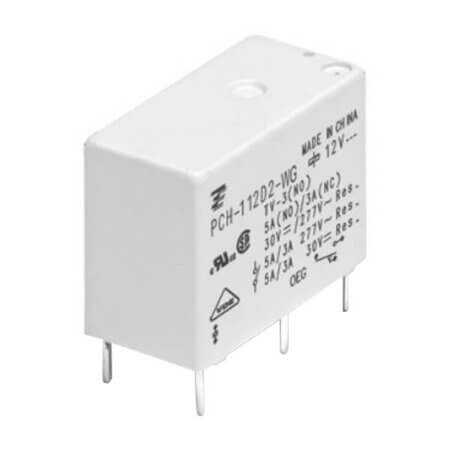

PCH-112D2H,000 RELAY 5A 12VDC SPDT THT OEG

PCH-112D2H,000 RELAY 5A 12VDC SPDT THT OEG Description

PCH-112D2H,000 RELAY 5A 12VDC SPDT THT OEG PCH-112D2H,000 is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 277VAC/30VDC - Max and coil resistance of 360 Ohms. Features a coil power of 400mW and operates within a temperature range of -40°C~+85°C.Compact design with dimensions: length 20.00mm, width 10.00mm, and height 15.20mm.Manufactured by TE CONNECTIVITY and compliant with ROHS standards. Packaged as BULK for convenience.

PCH-112D2H,000 RELAY 5A 12VDC SPDT THT OEG Technical Specifications

• Manufacturer: TE CONNECTIVITY
• RelayType: Relay General
• Series: PCH
• MountingType: THT
• ContactForm: SPDT (1 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 5A
• ContactCurrent(Max):
• CoilVoltage: 12VDC
• CoilCurrent: 33.30mA
• ContactVoltage: 277VAC/30VDC - Max
• CoilResistance: 360 Ohms
• CoilPower: 400mW
• OperatingTemperature: -40°C~+85°C
• NumberofPins: 5 Pin
• Length: 20.00mm
• Width: 10.00mm
• Height: 15.20mm
• Rohs: ROHS
• Packaging: BULK

---

You can click for product datasheet.
