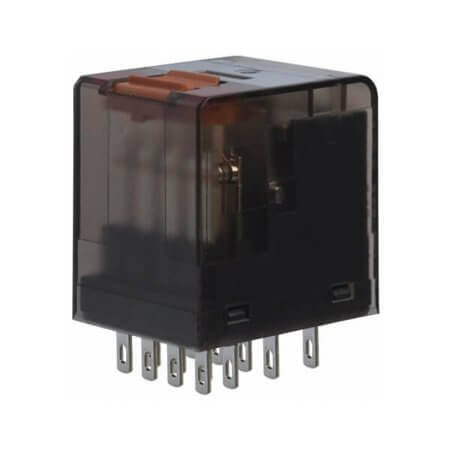

6-1419111-3 RELAY POWER 10A 110VDC PCB TYPE 11PIN PT370110

6-1419111-3 RELAY POWER 10A 110VDC PCB TYPE 11PIN PT370110 Description

6-1419111-3 RELAY POWER 10A 110VDC PCB TYPE 11PIN PT370110 6-1419111-3 is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 400VAC - Max and coil resistance of 16.10K Ohms. Features a coil power of 750mW and operates within a temperature range of -40°C~+70°C.Compact design with dimensions: length 28.00mm, width 22.50mm, and height 29.00mm.Manufactured by TE CONNECTIVITY and compliant with ROHS standards. Packaged as BULK for convenience.

6-1419111-3 RELAY POWER 10A 110VDC PCB TYPE 11PIN PT370110 Technical Specifications

• Manufacturer: TE CONNECTIVITY
• RelayType: Relay General
• Series: PT
• MountingType: Socket
• ContactForm: 3PDT (3 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 10A
• ContactCurrent(Max):
• CoilVoltage: 110VDC
• CoilCurrent:
• ContactVoltage: 400VAC - Max
• CoilResistance: 16.10K Ohms
• CoilPower: 750mW
• OperatingTemperature: -40°C~+70°C
• NumberofPins: 8 Pin
• Length: 28.00mm
• Width: 22.50mm
• Height: 29.00mm
• Rohs: ROHS
• Packaging: BULK

---

You can click for product datasheet.
