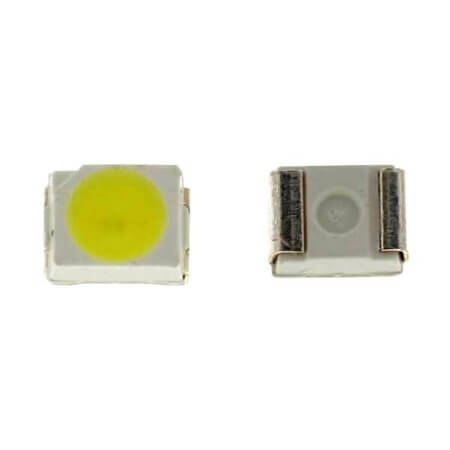

HLA3528H415WS113L-C42 LED SMD 3528 CW 5700-6000K min.7LM@20mA 58CRI

HLA3528H415WS113L-C42 LED SMD 3528 CW 5700-6000K min.7LM@20mA 58CRI Description

The HLA3528H415WS113L-C42 LED SMD 3528 CW 5700-6000K min.7LM@20mA 58CRI The HLA3528H415WS113L-C42 is a high-quality product offering LED SMD 3528 CW 5700-6000K min.7LM@20mA 58CRI. With a shrink ratio of N/A and -40°C~+85°C operating temperature, it provides reliability in various applications.

HLA3528H415WS113L-C42 LED SMD 3528 CW 5700-6000K min.7LM@20mA 58CRI Technical Specifications

• Manufacturer: HONGLITRONIC
• Color: Cool White
• MountingType: SMT
• Package/Case: 3528
• MountingStyle: Top View
• MaxPower: 100mW
• CCT: 5700-6000K
• Luminous Flux(25°C): 7lm
• Luminous Flux(85°C):
• Luminous Intensity(25°C):
• ForwardVoltage: 2.80-3.40V @ 25°C
• Forward Current: 30mA
• TestCurrent: 20mA
• CRI: 58
• ViewAngle: 120°
• ThermalResistance: 100°C/W
• Diameter:
• Length: 3.50mm
• Width: 2.80mm
• Height: 1.40mm
• OperatingTemperature: -40°C~+85°C
• Rohs: ROHS
• TAPE&REEL: TAPE&REEL
• ShrinkRatio: N/A
