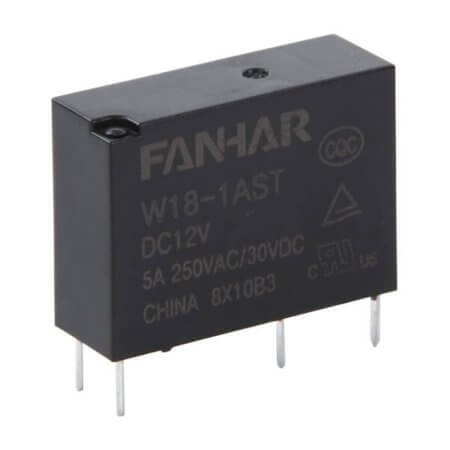

W18-1AST-DC5V-ALDP RELAY POWER 5A 5VDC 1FormA (ALDP) FANHAR

W18-1AST-DC5V-ALDP RELAY POWER 5A 5VDC 1FormA (ALDP) FANHAR Description

W18-1AST-DC5V-ALDP RELAY POWER 5A 5VDC 1FormA (ALDP) FANHAR W18-1AST-DC5V-ALDP is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 277VAC/30VDC and coil resistance of 125 Ohms. Features a coil power of 200mW and operates within a temperature range of -40°C~+85°C.Compact design with dimensions: length 20.50mm, width 7.20mm, and height 14.70mm.Manufactured by FANHAR and compliant with ROHS standards. Packaged as TRAY for convenience.

W18-1AST-DC5V-ALDP RELAY POWER 5A 5VDC 1FormA (ALDP) FANHAR Technical Specifications

• Manufacturer: FANHAR
• RelayType: Relay Power
• Series: W18
• MountingType: THT
• ContactForm: SPST-NO (1 Form A)
• CoilType: Non Latching
• ContactCurrent(Nom): 5A
• ContactCurrent(Max): 10A
• CoilVoltage: 5VDC
• CoilCurrent: 40mA
• ContactVoltage: 277VAC/30VDC
• CoilResistance: 125 Ohms
• CoilPower: 200mW
• OperatingTemperature: -40°C~+85°C
• NumberofPins: 4 Pin
• Length: 20.50mm
• Width: 7.20mm
• Height: 14.70mm
• Rohs: ROHS
• Packaging: TRAY

---

You can click for product datasheet.
