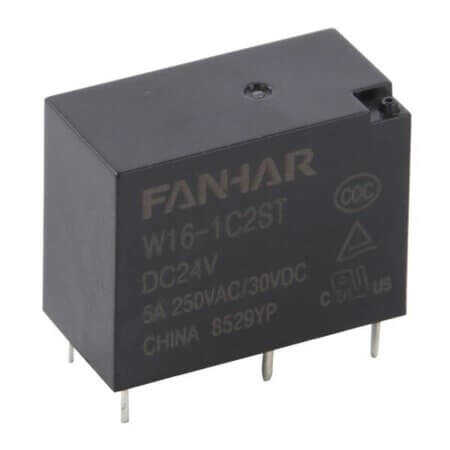

W16-1C2ST-DV24 RELAY POWER 5A 24VDC 1FormC (ALQ) FANHAR

W16-1C2ST-DV24 RELAY POWER 5A 24VDC 1FormC (ALQ) FANHAR Description

W16-1C2ST-DV24 RELAY POWER 5A 24VDC 1FormC (ALQ) FANHAR W16-1C2ST-DV24 is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 250VAC/30VDC and coil resistance of 1.28K Ohms. Features a coil power of 450mW and operates within a temperature range of -40°C~+85°C.Compact design with dimensions: length 20.50mm, width 10.40mm, and height 15.60mm.Manufactured by FANHAR and compliant with ROHS standards. Packaged as TRAY for convenience.

W16-1C2ST-DV24 RELAY POWER 5A 24VDC 1FormC (ALQ) FANHAR Technical Specifications

• Manufacturer: FANHAR
• RelayType: Relay Power
• Series: W16
• MountingType: THT
• ContactForm: SPDT (1 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 5A
• ContactCurrent(Max): 10A
• CoilVoltage: 24VDC
• CoilCurrent: 18.80mA
• ContactVoltage: 250VAC/30VDC
• CoilResistance: 1.28K Ohms
• CoilPower: 450mW
• OperatingTemperature: -40°C~+85°C
• NumberofPins: 5 Pin
• Length: 20.50mm
• Width: 10.40mm
• Height: 15.60mm
• Rohs: ROHS
• Packaging: TRAY

---

You can click for product datasheet.
