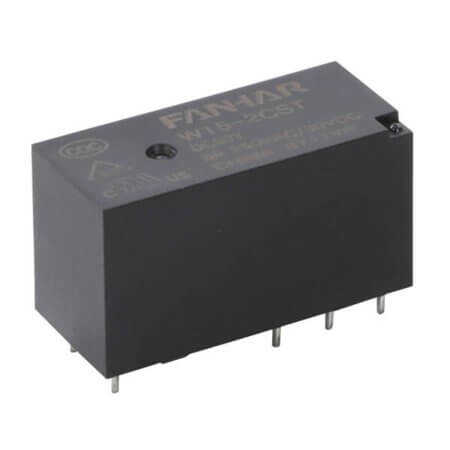

W15-2CST-DC24V 8A RELAY POWER 8A 24VDC 2FormC 2P (JW2) FANHAR

W15-2CST-DC24V 8A RELAY POWER 8A 24VDC 2FormC 2P (JW2) FANHAR Description

W15-2CST-DC24V 8A RELAY POWER 8A 24VDC 2FormC 2P (JW2) FANHAR W15-2CST-DC24V 8A is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 277VAC/30VDC - Max and coil resistance of 1.44K Ohms. Features a coil power of 400mW and operates within a temperature range of -40°C~+85°C.Compact design with dimensions: length 28.80mm, width 12.50mm, and height 15.50mm.Manufactured by FANHAR and compliant with ROHS standards. Packaged as TRAY for convenience.

W15-2CST-DC24V 8A RELAY POWER 8A 24VDC 2FormC 2P (JW2) FANHAR Technical Specifications

• Manufacturer: FANHAR
• RelayType: Relay Power
• Series: W15
• MountingType: THT
• ContactForm: DPDT (2 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 8A
• ContactCurrent(Max):
• CoilVoltage: 24VDC
• CoilCurrent: 16.70mA
• ContactVoltage: 277VAC/30VDC - Max
• CoilResistance: 1.44K Ohms
• CoilPower: 400mW
• OperatingTemperature: -40°C~+85°C
• NumberofPins: 8 Pin
• Length: 28.80mm
• Width: 12.50mm
• Height: 15.50mm
• Rohs: ROHS
• Packaging: TRAY

---

You can click for product datasheet.
