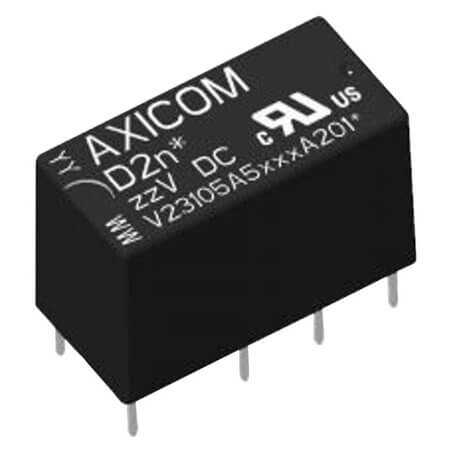

V23105A5476A201 RELAY 3A 12VDC DPDT TELECOM

V23105A5476A201 RELAY 3A 12VDC DPDT TELECOM Description

V23105A5476A201 RELAY 3A 12VDC DPDT TELECOM V23105A5476A201 is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 250VAC/220VDC - Max and coil resistance of 280 Ohms. Features a coil power of 400mW and operates within a temperature range of -40°C~+85°C.Compact design with dimensions: length 20.20mm, width 10.00mm, and height 10.80mm.Manufactured by TE CONNECTIVITY and compliant with ROHS standards. Packaged as TUBE for convenience.

V23105A5476A201 RELAY 3A 12VDC DPDT TELECOM Technical Specifications

• Manufacturer: TE CONNECTIVITY
• RelayType: Relay Telecom
• Series: V23105
• MountingType: THT
• ContactForm: DPDT (2 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 3A
• ContactCurrent(Max):
• CoilVoltage: 12VDC
• CoilCurrent: 43mA
• ContactVoltage: 250VAC/220VDC - Max
• CoilResistance: 280 Ohms
• CoilPower: 400mW
• OperatingTemperature: -40°C~+85°C
• NumberofPins: 8 Pin
• Length: 20.20mm
• Width: 10.00mm
• Height: 10.80mm
• Rohs: ROHS
• Packaging: TUBE

---

You can click for product datasheet.
