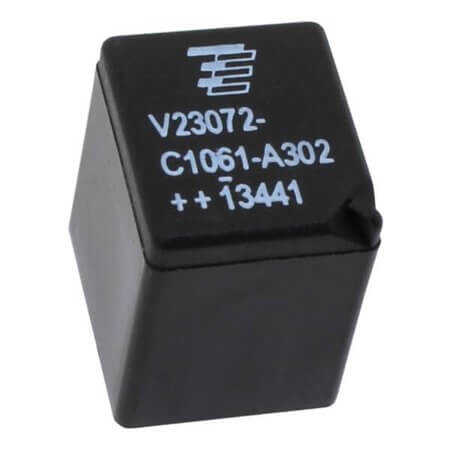

V23072-C1061-A302 RELAY 15A 12VDC 1FORMA

V23072-C1061-A302 RELAY 15A 12VDC 1FORMA Description

V23072-C1061-A302 RELAY 15A 12VDC 1FORMA V23072-C1061-A302 is a reliable and efficient general relay that designed for N/A applications with a contact voltage of nan and coil resistance of 130 Ohms. Features a coil power of 1.10W and operates within a temperature range of -40°C~+85°C.Compact design with dimensions: length 16.90mm, width 14.70mm, and height 19.20mm.Manufactured by TE CONNECTIVITY and compliant with ROHS standards. Packaged as TUBE for convenience.

V23072-C1061-A302 RELAY 15A 12VDC 1FORMA Technical Specifications

• Manufacturer: TE CONNECTIVITY
• RelayType: Relay Automotive
• Series: V23072
• MountingType: THT
• ContactForm: SPST-NO (1 Form A)
• CoilType: Non Latching
• ContactCurrent(Nom): 15A
• ContactCurrent(Max):
• CoilVoltage: 12VDC
• CoilCurrent:
• ContactVoltage:
• CoilResistance: 130 Ohms
• CoilPower: 1.10W
• OperatingTemperature: -40°C~+85°C
• NumberofPins: 4 Pin
• Length: 16.90mm
• Width: 14.70mm
• Height: 19.20mm
• Rohs: ROHS
• Packaging: TUBE

---

You can click for product datasheet.
