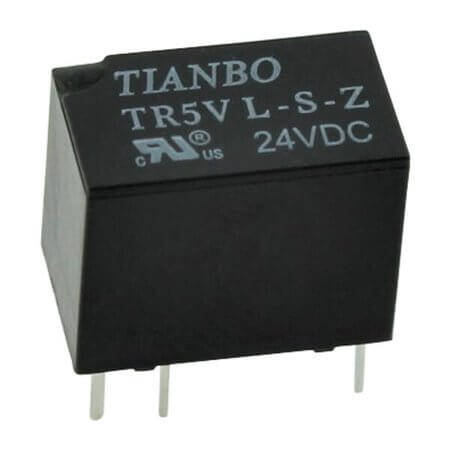

TR5V L-S-Z/24VDC RELAY 1A 24VDC 1PNC TELECOM TYPE TIANBO

TR5V L-S-Z/24VDC RELAY 1A 24VDC 1PNC TELECOM TYPE TIANBO Description

TR5V L-S-Z/24VDC RELAY 1A 24VDC 1PNC TELECOM TYPE TIANBO TR5V L-S-Z/24VDC is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 120VAC/60VDC and coil resistance of 2.88K Ohms. Features a coil power of 200mW and operates within a temperature range of -30°C~+85°C.Compact design with dimensions: length 12.40mm, width 7.40mm, and height 10.00mm.Manufactured by TIANBO and compliant with ROHS standards. Packaged as TUBE for convenience.

TR5V L-S-Z/24VDC RELAY 1A 24VDC 1PNC TELECOM TYPE TIANBO Technical Specifications

• Manufacturer: TIANBO
• RelayType: Relay Telecom
• Series: TR5V
• MountingType: THT
• ContactForm: SPDT (1 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 1A
• ContactCurrent(Max): 2A
• CoilVoltage: 24VDC
• CoilCurrent: 8.30mA
• ContactVoltage: 120VAC/60VDC
• CoilResistance: 2.88K Ohms
• CoilPower: 200mW
• OperatingTemperature: -30°C~+85°C
• NumberofPins: 6 Pin
• Length: 12.40mm
• Width: 7.40mm
• Height: 10.00mm
• Rohs: ROHS
• Packaging: TUBE

---

You can click for product datasheet.
