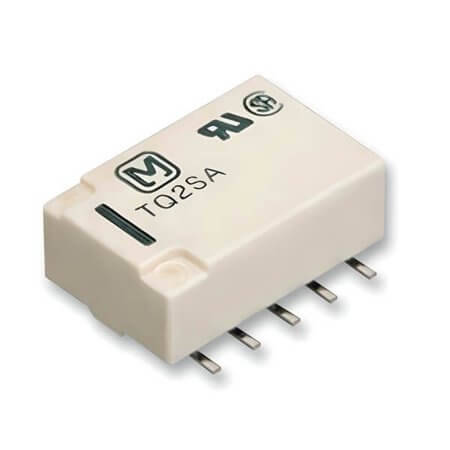

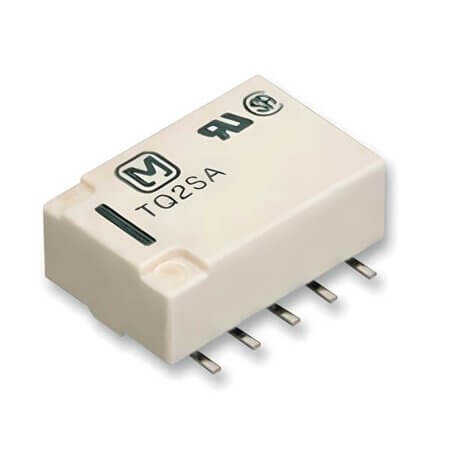

TQ2SA-24V RELAY 2A 24VDC 2FormC TELECOM TYPE SMD

TQ2SA-24V RELAY 2A 24VDC 2FormC TELECOM TYPE SMD Description

TQ2SA-24V RELAY 2A 24VDC 2FormC TELECOM TYPE SMD TQ2SA-24V is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 125VAC/30VDC and coil resistance of 2.88K Ohms. Features a coil power of 200mW and operates within a temperature range of -40°C~+85°C.Compact design with dimensions: length 14.00mm, width 9.00mm, and height 4.90mm.Manufactured by PANASONIC COMP. and compliant with ROHS standards. Packaged as TUBE for convenience.

TQ2SA-24V RELAY 2A 24VDC 2FormC TELECOM TYPE SMD Technical Specifications

• Manufacturer: PANASONIC COMP.
• RelayType: Relay Telecom
• Series: TQ
• MountingType: SMT
• ContactForm: DPDT (2 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 2A
• ContactCurrent(Max):
• CoilVoltage: 24VDC
• CoilCurrent: 8.30mA
• ContactVoltage: 125VAC/30VDC
• CoilResistance: 2.88K Ohms
• CoilPower: 200mW
• OperatingTemperature: -40°C~+85°C
• NumberofPins: 10 Pin
• Length: 14.00mm
• Width: 9.00mm
• Height: 4.90mm
• Rohs: ROHS
• Packaging: TUBE

---

You can click for product datasheet.
