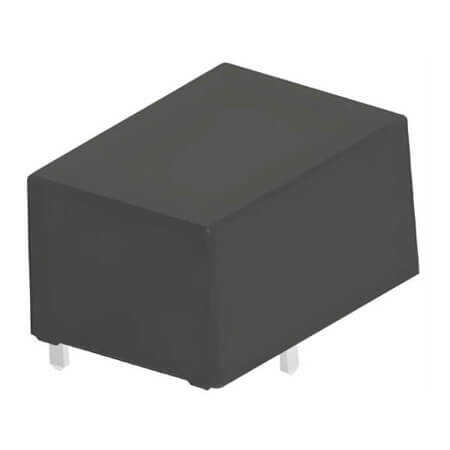

T9GS1L14-24 RELAY POWER 30A 24VDC SPST-NO (1 Form A)

T9GS1L14-24 RELAY POWER 30A 24VDC SPST-NO (1 Form A) Description

T9GS1L14-24 RELAY POWER 30A 24VDC SPST-NO (1 Form A) T9GS1L14-24 is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 480VAC - Max and coil resistance of 640 Ohms. Features a coil power of 900mW and operates within a temperature range of -40°C~+105°C.Compact design with dimensions: length 29.00mm, width 21.50mm, and height 15.70mm.Manufactured by TE CONNECTIVITY and compliant with ROHS standards. Packaged as TUBE for convenience.

T9GS1L14-24 RELAY POWER 30A 24VDC SPST-NO (1 Form A) Technical Specifications

• Manufacturer: TE CONNECTIVITY
• RelayType: Relay Power
• Series: T9G
• MountingType: THT
• ContactForm: SPST-NO (1 Form A)
• CoilType: Non Latching
• ContactCurrent(Nom): 30A
• ContactCurrent(Max):
• CoilVoltage: 24VDC
• CoilCurrent:
• ContactVoltage: 480VAC - Max
• CoilResistance: 640 Ohms
• CoilPower: 900mW
• OperatingTemperature: -40°C~+105°C
• NumberofPins: 5 Pin
• Length: 29.00mm
• Width: 21.50mm
• Height: 15.70mm
• Rohs: ROHS
• Packaging: TUBE

---

You can click for product datasheet.
