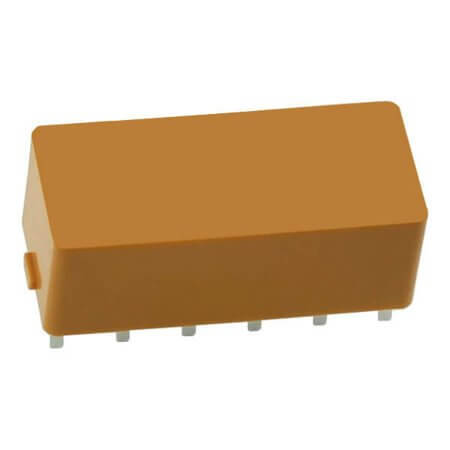

S2EB-L2-24V RELAY 4A 24V 4PST (2 Form A,2 Form B)

S2EB-L2-24V RELAY 4A 24V 4PST (2 Form A,2 Form B) Description

S2EB-L2-24V RELAY 4A 24V 4PST (2 Form A,2 Form B) S2EB-L2-24V is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 250VAC/30VDC and coil resistance of 2.85K Ohms. Features a coil power of 202mW and operates within a temperature range of -55°C~+65°C.Compact design with dimensions: length 28.00mm, width 12.00mm, and height 10.00mm.Manufactured by PANASONIC COMP. and compliant with ROHS standards. Packaged as TRAY for convenience.

S2EB-L2-24V RELAY 4A 24V 4PST (2 Form A,2 Form B) Technical Specifications

• Manufacturer: PANASONIC COMP.
• RelayType: Relay Power Polarized
• Series: S
• MountingType: THT
• ContactForm: 4PST-NO/NC (2 Form A/2 Form B)
• CoilType: Latching, Dual Coil
• ContactCurrent(Nom): 4A
• ContactCurrent(Max):
• CoilVoltage: 24VDC
• CoilCurrent: 8.40mA
• ContactVoltage: 250VAC/30VDC
• CoilResistance: 2.85K Ohms
• CoilPower: 202mW
• OperatingTemperature: -55°C~+65°C
• NumberofPins: 12 Pin
• Length: 28.00mm
• Width: 12.00mm
• Height: 10.00mm
• Rohs: ROHS
• Packaging: TRAY

---

You can click for product datasheet.
