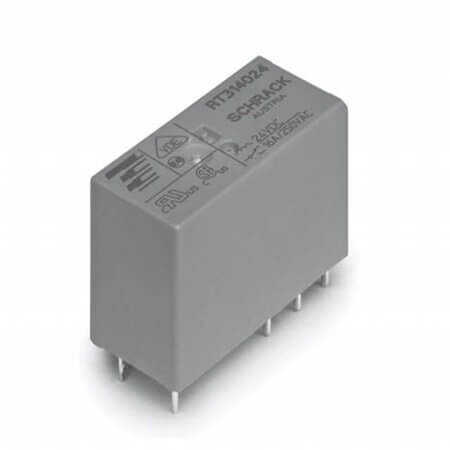

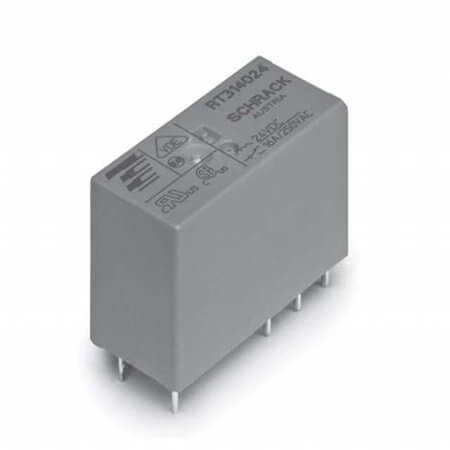

RT314024 RELAY GEN PURPOSE SPDT 16A 24V

RT314024 RELAY GEN PURPOSE SPDT 16A 24V Description

RT314024 RELAY GEN PURPOSE SPDT 16A 24V RT314024 is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 250VAC and coil resistance of 1.44K Ohms. Features a coil power of 400mW and operates within a temperature range of -40°C~+85°C.Compact design with dimensions: length 29.00mm, width 12.70mm, and height 16.20mm.Manufactured by TE CONNECTIVITY and compliant with nan standards. Packaged as TUBE for convenience.

RT314024 RELAY GEN PURPOSE SPDT 16A 24V Technical Specifications

• Manufacturer: TE CONNECTIVITY
• RelayType: Relay General
• Series: RT1
• MountingType: THT
• ContactForm: SPDT (1 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 16A
• ContactCurrent(Max):
• CoilVoltage: 24VDC
• CoilCurrent: 16.70mA
• ContactVoltage: 250VAC
• CoilResistance: 1.44K Ohms
• CoilPower: 400mW
• OperatingTemperature: -40°C~+85°C
• NumberofPins: 8 Pin
• Length: 29.00mm
• Width: 12.70mm
• Height: 16.20mm
• Rohs:
• Packaging: TUBE

---

You can click for product datasheet.
