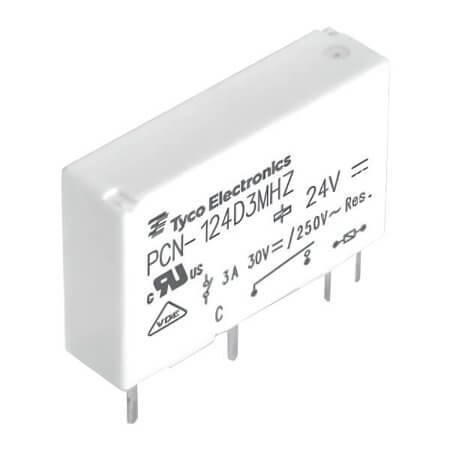

PCN-124D3MHZ,001 RELAY 5A 24V (1a) TYCO

PCN-124D3MHZ,001 RELAY 5A 24V (1a) TYCO Description

PCN-124D3MHZ,001 RELAY 5A 24V (1a) TYCO PCN-124D3MHZ,001 is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 250VAC/30VDC and coil resistance of 4.80K Ohms. Features a coil power of 120mW and operates within a temperature range of -30°C~+85°C.Compact design with dimensions: length 20.00mm, width 5.00mm, and height 12.50mm.Manufactured by TE CONNECTIVITY and compliant with ROHS standards. Packaged as TUBE for convenience.

PCN-124D3MHZ,001 RELAY 5A 24V (1a) TYCO Technical Specifications

• Manufacturer: TE CONNECTIVITY
• RelayType: Relay Power Slim
• Series: PCN
• MountingType: THT
• ContactForm: SPST-NO (1 Form A)
• CoilType: Non Latching
• ContactCurrent(Nom): 3A
• ContactCurrent(Max): 5A
• CoilVoltage: 24VDC
• CoilCurrent:
• ContactVoltage: 250VAC/30VDC
• CoilResistance: 4.80K Ohms
• CoilPower: 120mW
• OperatingTemperature: -30°C~+85°C
• NumberofPins: 4 Pin
• Length: 20.00mm
• Width: 5.00mm
• Height: 12.50mm
• Rohs: ROHS
• Packaging: TUBE

---

You can click for product datasheet.
