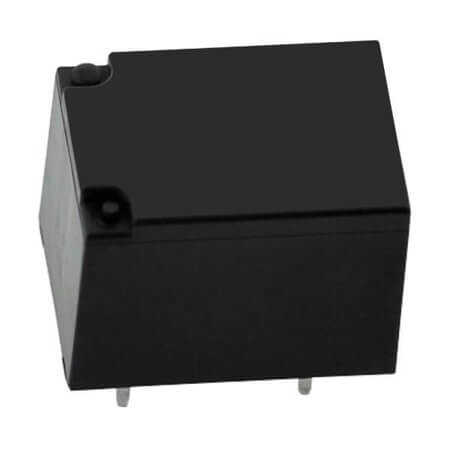

JS1AF-B-12V-FT RELAY POWER 10A 12VDC ULTRA-MINI. PCB TYPE PANASON

JS1AF-B-12V-FT RELAY POWER 10A 12VDC ULTRA-MINI. PCB TYPE PANASON Description

JS1AF-B-12V-FT RELAY POWER 10A 12VDC ULTRA-MINI. PCB TYPE PANASON JS1AF-B-12V-FT is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 250VAC/30VDC and coil resistance of 400 Ohms. Features a coil power of 360mW and operates within a temperature range of -40°C~+70°C.Compact design with dimensions: length 22.00mm, width 16.00mm, and height 16.00mm.Manufactured by PANASONIC COMP. and compliant with ROHS standards. Packaged as TRAY for convenience.

JS1AF-B-12V-FT RELAY POWER 10A 12VDC ULTRA-MINI. PCB TYPE PANASON Technical Specifications

• Manufacturer: PANASONIC COMP.
• RelayType: Relay Power
• Series: JS
• MountingType: THT
• ContactForm: SPST-NO (1 Form A)
• CoilType: Non Latching
• ContactCurrent(Nom): 6A
• ContactCurrent(Max): 10A
• CoilVoltage: 12VDC
• CoilCurrent: 30mA
• ContactVoltage: 250VAC/30VDC
• CoilResistance: 400 Ohms
• CoilPower: 360mW
• OperatingTemperature: -40°C~+70°C
• NumberofPins: 4 Pin
• Length: 22.00mm
• Width: 16.00mm
• Height: 16.00mm
• Rohs: ROHS
• Packaging: TRAY

---

You can click for product datasheet.
