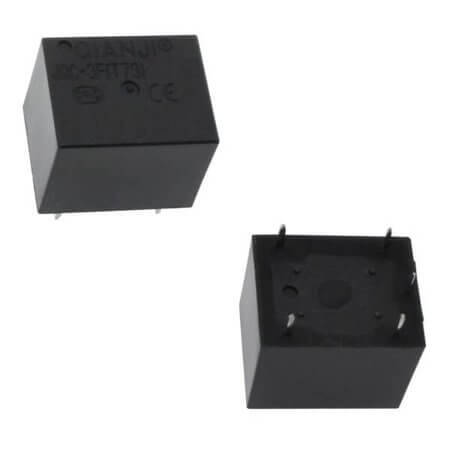

JQC-3F-(T73)-1Z-9VDC RELAY POWER 10A 9VDC 1C PCB TYPE (JS1) 5PIN

JQC-3F-(T73)-1Z-9VDC RELAY POWER 10A 9VDC 1C PCB TYPE (JS1) 5PIN Description

JQC-3F-(T73)-1Z-9VDC RELAY POWER 10A 9VDC 1C PCB TYPE (JS1) 5PIN JQC-3F-(T73)-1Z-9VDC is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 250VAC and coil resistance of 180 Ohms. Features a coil power of 450mW and operates within a temperature range of nan.Compact design with dimensions: length 19.50mm, width 15.50mm, and height 15.50mm.Manufactured by QIANJI and compliant with ROHS standards. Packaged as TUBE for convenience.

JQC-3F-(T73)-1Z-9VDC RELAY POWER 10A 9VDC 1C PCB TYPE (JS1) 5PIN Technical Specifications

• Manufacturer: QIANJI
• RelayType: Relay Power
• Series: JQC-3F
• MountingType: THT
• ContactForm: SPDT (1 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 7A
• ContactCurrent(Max): 10A
• CoilVoltage: 9VDC
• CoilCurrent:
• ContactVoltage: 250VAC
• CoilResistance: 180 Ohms
• CoilPower: 450mW
• OperatingTemperature:
• NumberofPins: 5 Pin
• Length: 19.50mm
• Width: 15.50mm
• Height: 15.50mm
• Rohs: ROHS
• Packaging: TUBE

---

You can click for product datasheet.
