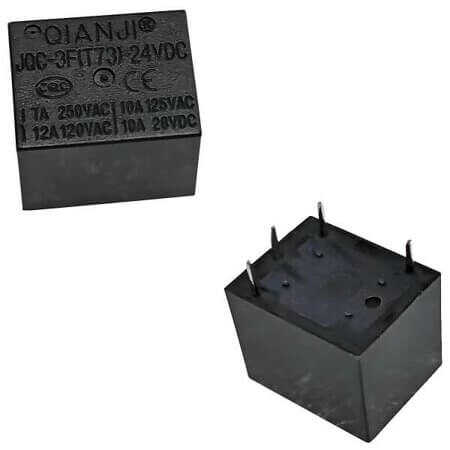

JQC-3F-(T73)-1H-24VDC RELAY POWER 10A 24VDC 1A PCB TYPE (JS1) 4PIN

JQC-3F-(T73)-1H-24VDC RELAY POWER 10A 24VDC 1A PCB TYPE (JS1) 4PIN Description

JQC-3F-(T73)-1H-24VDC RELAY POWER 10A 24VDC 1A PCB TYPE (JS1) 4PIN JQC-3F-(T73)-1H-24VDC is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 250VAC and coil resistance of 1.60K Ohms. Features a coil power of 360mW and operates within a temperature range of nan.Compact design with dimensions: length 19.50mm, width 15.50mm, and height 15.50mm.Manufactured by QIANJI and compliant with ROHS standards. Packaged as TUBE for convenience.

JQC-3F-(T73)-1H-24VDC RELAY POWER 10A 24VDC 1A PCB TYPE (JS1) 4PIN Technical Specifications

• Manufacturer: QIANJI
• RelayType: Relay Power
• Series: JQC-3F
• MountingType: THT
• ContactForm: SPST-NO (1 Form A)
• CoilType: Non Latching
• ContactCurrent(Nom): 7A
• ContactCurrent(Max): 10A
• CoilVoltage: 24VDC
• CoilCurrent:
• ContactVoltage: 250VAC
• CoilResistance: 1.60K Ohms
• CoilPower: 360mW
• OperatingTemperature:
• NumberofPins: 4 Pin
• Length: 19.50mm
• Width: 15.50mm
• Height: 15.50mm
• Rohs: ROHS
• Packaging: TUBE

---

You can click for product datasheet.
