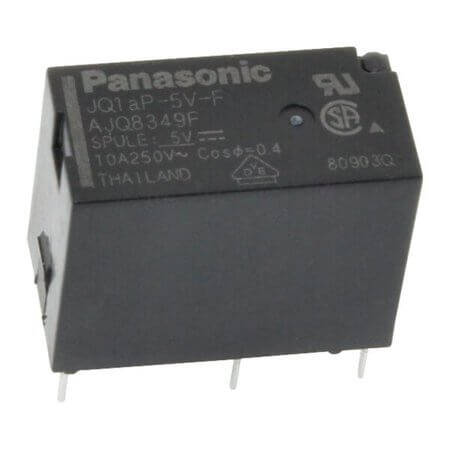

JQ1AP-5V-F RELAY POWER 10A 5VDC 1FormA PANASONIC

JQ1AP-5V-F RELAY POWER 10A 5VDC 1FormA PANASONIC Description

JQ1AP-5V-F RELAY POWER 10A 5VDC 1FormA PANASONIC JQ1AP-5V-F is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 125VAC/30VDC and coil resistance of 125 Ohms. Features a coil power of 200mW and operates within a temperature range of -40°C~+70°C.Compact design with dimensions: length 20.00mm, width 10.00mm, and height 15.60mm.Manufactured by PANASONIC COMP. and compliant with ROHS standards. Packaged as TRAY for convenience.

JQ1AP-5V-F RELAY POWER 10A 5VDC 1FormA PANASONIC Technical Specifications

• Manufacturer: PANASONIC COMP.
• RelayType: Relay Power Small
• Series: JQ
• MountingType: THT
• ContactForm: SPST-NO (1 Form A)
• CoilType: Non Latching
• ContactCurrent(Nom): 5A
• ContactCurrent(Max): 10A
• CoilVoltage: 5VDC
• CoilCurrent: 40mA
• ContactVoltage: 125VAC/30VDC
• CoilResistance: 125 Ohms
• CoilPower: 200mW
• OperatingTemperature: -40°C~+70°C
• NumberofPins: 4 Pin
• Length: 20.00mm
• Width: 10.00mm
• Height: 15.60mm
• Rohs: ROHS
• Packaging: TRAY

---

You can click for product datasheet.
