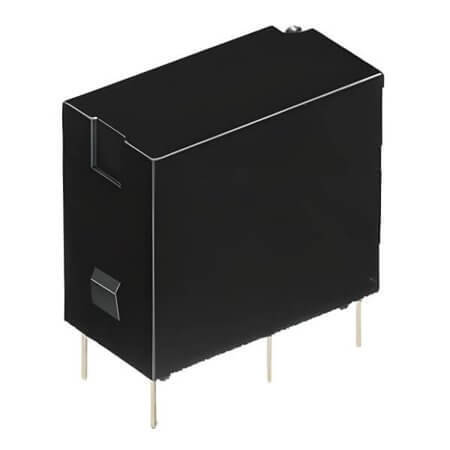

JQ1A-B-12V-F RELAY POWER 10A 12VDC 1PNC PANASONIC

JQ1A-B-12V-F RELAY POWER 10A 12VDC 1PNC PANASONIC Description

JQ1A-B-12V-F RELAY POWER 10A 12VDC 1PNC PANASONIC JQ1A-B-12V-F is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 250VAC/110VDC - Max and coil resistance of 720 Ohms. Features a coil power of 200mW and operates within a temperature range of -40°C~+85°C.Compact design with dimensions: length 20.00mm, width 10.00mm, and height 15.60mm.Manufactured by PANASONIC COMP. and compliant with ROHS standards. Packaged as TRAY for convenience.

JQ1A-B-12V-F RELAY POWER 10A 12VDC 1PNC PANASONIC Technical Specifications

• Manufacturer: PANASONIC COMP.
• RelayType: Relay Power Small
• Series: JQ
• MountingType: THT
• ContactForm: SPST-NO (1 Form A)
• CoilType: Non Latching
• ContactCurrent(Nom): 2A
• ContactCurrent(Max): 5A
• CoilVoltage: 12VDC
• CoilCurrent: 16.70mA
• ContactVoltage: 250VAC/110VDC - Max
• CoilResistance: 720 Ohms
• CoilPower: 200mW
• OperatingTemperature: -40°C~+85°C
• NumberofPins: 4 Pin
• Length: 20.00mm
• Width: 10.00mm
• Height: 15.60mm
• Rohs: ROHS
• Packaging: TRAY

---

You can click for product datasheet.
