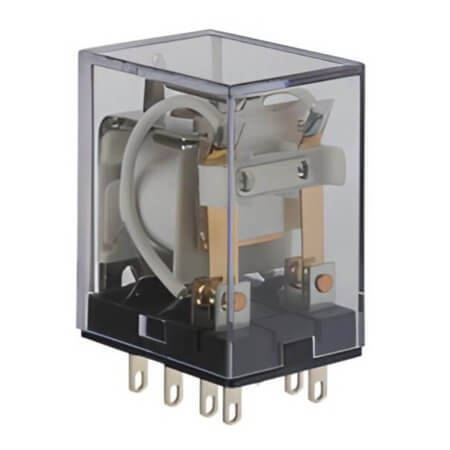

HJ2-AC240V RELAY 7A 240VAC 2PNC NAIS

HJ2-AC240V RELAY 7A 240VAC 2PNC NAIS Description

HJ2-AC240V RELAY 7A 240VAC 2PNC NAIS HJ2-AC240V is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 250VAC/30VDC and coil resistance of nan. Features a coil power of 1.30VA and operates within a temperature range of -40°C~+70°C.Compact design with dimensions: length 28.00mm, width 21.50mm, and height 35.00mm.Manufactured by PANASONIC COMP. and compliant with ROHS standards. Packaged as TRAY for convenience.

HJ2-AC240V RELAY 7A 240VAC 2PNC NAIS Technical Specifications

• Manufacturer: PANASONIC COMP.
• RelayType: Relay Automation
• Series: HJ
• MountingType: Socket
• ContactForm: DPDT (2 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 7A
• ContactCurrent(Max):
• CoilVoltage: 240VAC
• CoilCurrent: 5.60mA
• ContactVoltage: 250VAC/30VDC
• CoilResistance:
• CoilPower: 1.30VA
• OperatingTemperature: -40°C~+70°C
• NumberofPins: 8 Pin
• Length: 28.00mm
• Width: 21.50mm
• Height: 35.00mm
• Rohs: ROHS
• Packaging: TRAY

---

You can click for product datasheet.
