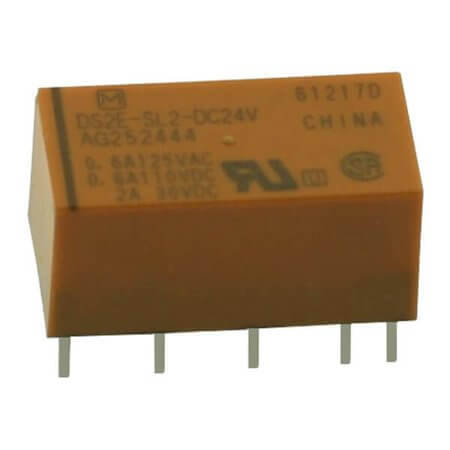

DS2E-SL2-DC24V RELAY 2A 24VDC 2PNC TELECOM LATCHING TYPE PANASONI

DS2E-SL2-DC24V RELAY 2A 24VDC 2PNC TELECOM LATCHING TYPE PANASONI Description

DS2E-SL2-DC24V RELAY 2A 24VDC 2PNC TELECOM LATCHING TYPE PANASONI DS2E-SL2-DC24V is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 250VAC/220VDC - Max and coil resistance of 3.20K Ohms. Features a coil power of 180mW and operates within a temperature range of -40°C~+70°C.Compact design with dimensions: length 20.00mm, width 9.90mm, and height 9.30mm.Manufactured by PANASONIC COMP. and compliant with ROHS standards. Packaged as TRAY for convenience.

DS2E-SL2-DC24V RELAY 2A 24VDC 2PNC TELECOM LATCHING TYPE PANASONI Technical Specifications

• Manufacturer: PANASONIC COMP.
• RelayType: Relay General
• Series: DS
• MountingType: THT
• ContactForm: DPDT (2 Form C)
• CoilType: Latching, Dual Coil
• ContactCurrent(Nom): 2A
• ContactCurrent(Max):
• CoilVoltage: 24VDC
• CoilCurrent: 7.50mA
• ContactVoltage: 250VAC/220VDC - Max
• CoilResistance: 3.20K Ohms
• CoilPower: 180mW
• OperatingTemperature: -40°C~+70°C
• NumberofPins: 10 Pin
• Length: 20.00mm
• Width: 9.90mm
• Height: 9.30mm
• Rohs: ROHS
• Packaging: TRAY

---

You can click for product datasheet.
