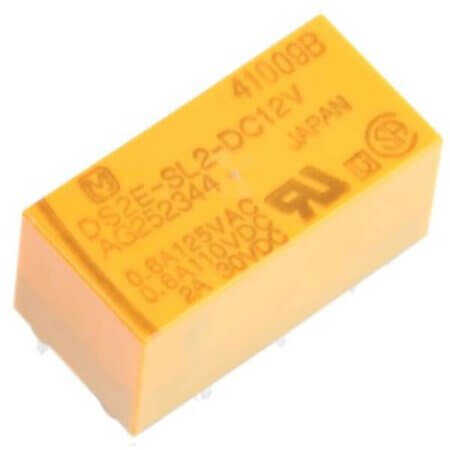

DS2E-SL2-DC12V RELAY 2A 12VDC 2PNC TELECOM LATCHING TYPE

DS2E-SL2-DC12V RELAY 2A 12VDC 2PNC TELECOM LATCHING TYPE Description

DS2E-SL2-DC12V RELAY 2A 12VDC 2PNC TELECOM LATCHING TYPE DS2E-SL2-DC12V is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 250VAC/220VDC - Max and coil resistance of 800 Ohms. Features a coil power of 180mW and operates within a temperature range of -40°C~+70°C.Compact design with dimensions: length 20.00mm, width 9.90mm, and height 9.90mm.Manufactured by PANASONIC COMP. and compliant with ROHS standards. Packaged as TUBE for convenience.

DS2E-SL2-DC12V RELAY 2A 12VDC 2PNC TELECOM LATCHING TYPE Technical Specifications

• Manufacturer: PANASONIC COMP.
• RelayType: Relay General
• Series: DS
• MountingType: THT
• ContactForm: DPDT (2 Form C)
• CoilType: Latching, Dual Coil
• ContactCurrent(Nom): 2A
• ContactCurrent(Max):
• CoilVoltage: 12VDC
• CoilCurrent: 15mA
• ContactVoltage: 250VAC/220VDC - Max
• CoilResistance: 800 Ohms
• CoilPower: 180mW
• OperatingTemperature: -40°C~+70°C
• NumberofPins: 10 Pin
• Length: 20.00mm
• Width: 9.90mm
• Height: 9.90mm
• Rohs: ROHS
• Packaging: TUBE

---

You can click for product datasheet.
