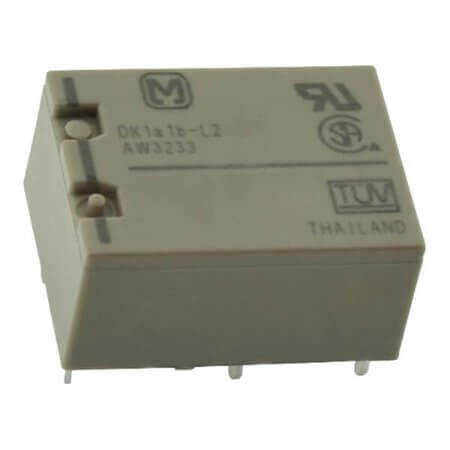

DK1A1B-6V RELAY POWER 8A 6V PANASONIC

DK1A1B-6V RELAY POWER 8A 6V PANASONIC Description

DK1A1B-6V RELAY POWER 8A 6V PANASONIC DK1A1B-6V is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 250VAC/30VDC and coil resistance of 180 Ohms. Features a coil power of 200mW and operates within a temperature range of -40°C~+65°C.Compact design with dimensions: length 20.00mm, width 15.00mm, and height 9.70mm.Manufactured by PANASONIC COMP. and compliant with ROHS standards. Packaged as TUBE for convenience.

DK1A1B-6V RELAY POWER 8A 6V PANASONIC Technical Specifications

• Manufacturer: PANASONIC COMP.
• RelayType: Relay Power
• Series: DK
• MountingType: THT
• ContactForm: DPST-NO/NC (1 Form A/1 Form B)
• CoilType: Non Latching
• ContactCurrent(Nom): 8A
• ContactCurrent(Max):
• CoilVoltage: 6VDC
• CoilCurrent: 33.30mA
• ContactVoltage: 250VAC/30VDC
• CoilResistance: 180 Ohms
• CoilPower: 200mW
• OperatingTemperature: -40°C~+65°C
• NumberofPins: 6 Pin
• Length: 20.00mm
• Width: 15.00mm
• Height: 9.70mm
• Rohs: ROHS
• Packaging: TUBE

---

You can click for product datasheet.
