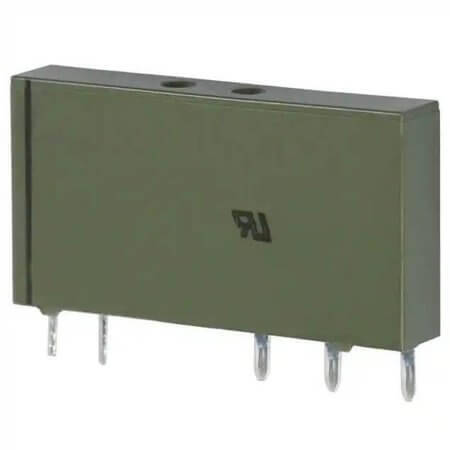

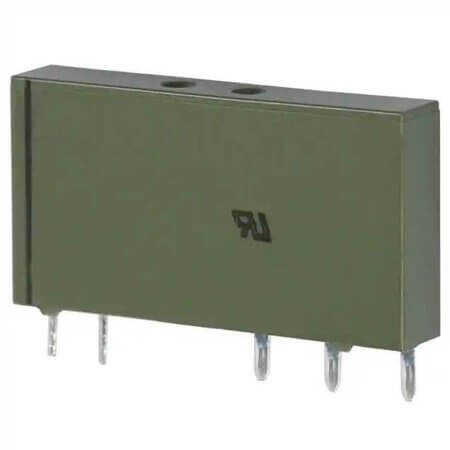

APE30012 RELAY 6A 12V 1PNC PANASONIC

APE30012 RELAY 6A 12V 1PNC PANASONIC Description

APE30012 RELAY 6A 12V 1PNC PANASONIC APE30012 is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 250VAC and coil resistance of 847 Ohms. Features a coil power of 170mW and operates within a temperature range of -40°C~+85°C.Compact design with dimensions: length 28.00mm, width 5.00mm, and height 15.00mm.Manufactured by PANASONIC COMP. and compliant with ROHS standards. Packaged as TUBE for convenience.

APE30012 RELAY 6A 12V 1PNC PANASONIC Technical Specifications

• Manufacturer: PANASONIC COMP.
• RelayType: Relay Power Slim
• Series: APE
• MountingType: THT
• ContactForm: SPDT (1 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 6A
• ContactCurrent(Max):
• CoilVoltage: 12VDC
• CoilCurrent: 14mA
• ContactVoltage: 250VAC
• CoilResistance: 847 Ohms
• CoilPower: 170mW
• OperatingTemperature: -40°C~+85°C
• NumberofPins: 5 Pin
• Length: 28.00mm
• Width: 5.00mm
• Height: 15.00mm
• Rohs: ROHS
• Packaging: TUBE

---

You can click for product datasheet.
