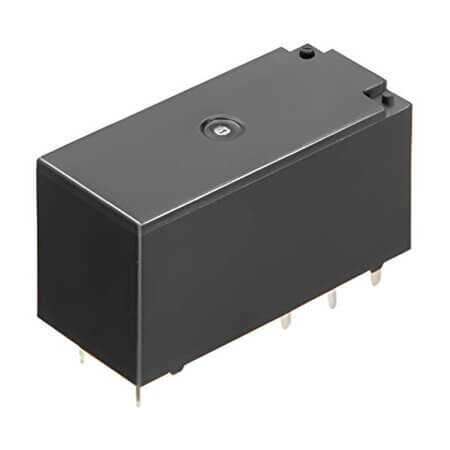

ALZN1F12W RELAY 16A 12V 1FormC

ALZN1F12W RELAY 16A 12V 1FormC Description

ALZN1F12W RELAY 16A 12V 1FormC ALZN1F12W is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 250VAC/440VAC - Max and coil resistance of 360 Ohms. Features a coil power of 400mW and operates within a temperature range of -40°C~+105°C.Compact design with dimensions: length 28.80mm, width 12.50mm, and height 15.70mm.Manufactured by PANASONIC COMP. and compliant with ROHS standards. Packaged as TRAY for convenience.

ALZN1F12W RELAY 16A 12V 1FormC Technical Specifications

• Manufacturer: PANASONIC COMP.
• RelayType: Relay Power
• Series: ALZN
• MountingType: THT
• ContactForm: SPDT (1 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 16A
• ContactCurrent(Max):
• CoilVoltage: 12VDC
• CoilCurrent: 33.30mA
• ContactVoltage: 250VAC/440VAC - Max
• CoilResistance: 360 Ohms
• CoilPower: 400mW
• OperatingTemperature: -40°C~+105°C
• NumberofPins: 8 Pin
• Length: 28.80mm
• Width: 12.50mm
• Height: 15.70mm
• Rohs: ROHS
• Packaging: TRAY

---

You can click for product datasheet.
