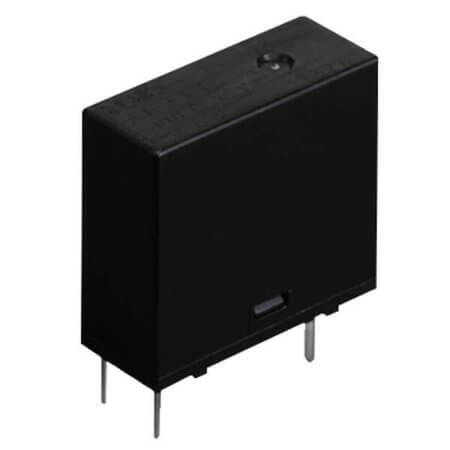

ALJ105W RELAY 3A 5VDC 1a PANASONIC

ALJ105W RELAY 3A 5VDC 1a PANASONIC Description

ALJ105W RELAY 3A 5VDC 1a PANASONIC ALJ105W is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 250VAC and coil resistance of 125 Ohms. Features a coil power of 200mW and operates within a temperature range of -40°C~+70°C.Compact design with dimensions: length 17.00mm, width 7.00mm, and height 16.00mm.Manufactured by PANASONIC COMP. and compliant with ROHS standards. Packaged as TRAY for convenience.

ALJ105W RELAY 3A 5VDC 1a PANASONIC Technical Specifications

• Manufacturer: PANASONIC COMP.
• RelayType: Relay Power
• Series: ALJ
• MountingType: THT
• ContactForm: SPST-NO (1 Form A)
• CoilType: Non Latching
• ContactCurrent(Nom): 3A
• ContactCurrent(Max): 5A
• CoilVoltage: 5VDC
• CoilCurrent: 40mA
• ContactVoltage: 250VAC
• CoilResistance: 125 Ohms
• CoilPower: 200mW
• OperatingTemperature: -40°C~+70°C
• NumberofPins: 4 Pin
• Length: 17.00mm
• Width: 7.00mm
• Height: 16.00mm
• Rohs: ROHS
• Packaging: TRAY

---

You can click for product datasheet.
