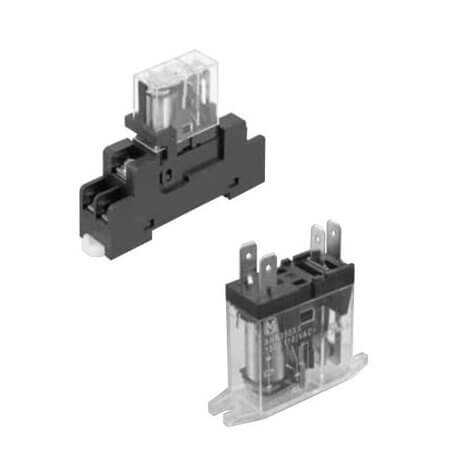

AHN22324 RELAY 5A 24VDC DPDT

AHN22324 RELAY 5A 24VDC DPDT Description

AHN22324 RELAY 5A 24VDC DPDT AHN22324 is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 250VAC/30VDC and coil resistance of 1.09K Ohms. Features a coil power of 530mW and operates within a temperature range of -40°C~+70°C.Compact design with dimensions: length 29.00mm, width 28.00mm, and height 13.00mm.Manufactured by PANASONIC COMP. and compliant with ROHS standards. Packaged as TRAY for convenience.

AHN22324 RELAY 5A 24VDC DPDT Technical Specifications

• Manufacturer: PANASONIC COMP.
• RelayType: Relay Automation
• Series: AHN
• MountingType: Socket
• ContactForm: DPDT (2 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 5A
• ContactCurrent(Max):
• CoilVoltage: 24VDC
• CoilCurrent: 22mA
• ContactVoltage: 250VAC/30VDC
• CoilResistance: 1.09K Ohms
• CoilPower: 530mW
• OperatingTemperature: -40°C~+70°C
• NumberofPins: 8 Pin
• Length: 29.00mm
• Width: 28.00mm
• Height: 13.00mm
• Rohs: ROHS
• Packaging: TRAY

---

You can click for product datasheet.
