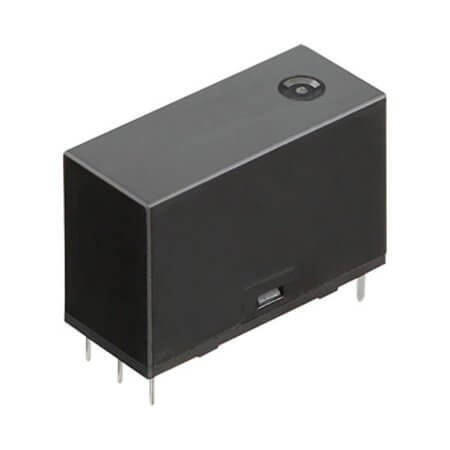

ADW1203T Relay 8A 3VDC Dual Coil 1FormA/1FormB

ADW1203T Relay 8A 3VDC Dual Coil 1FormA/1FormB Description

ADW1203T Relay 8A 3VDC Dual Coil 1FormA/1FormB ADW1203T is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 250VAC and coil resistance of 22.50 Ohms. Features a coil power of 400mW and operates within a temperature range of -40°C~+85°C.Compact design with dimensions: length 24.00mm, width 10.00mm, and height 18.80mm.Manufactured by PANASONIC COMP. and compliant with ROHS standards. Packaged as TRAY for convenience.

ADW1203T Relay 8A 3VDC Dual Coil 1FormA/1FormB Technical Specifications

• Manufacturer: PANASONIC COMP.
• RelayType: Relay Power Latching
• Series: ADW1
• MountingType: THT
• ContactForm: SPST-NO (1 Form A)
• CoilType: Latching, Dual Coil
• ContactCurrent(Nom): 5A
• ContactCurrent(Max): 8A
• CoilVoltage: 3VDC
• CoilCurrent: 133.33mA
• ContactVoltage: 250VAC
• CoilResistance: 22.50 Ohms
• CoilPower: 400mW
• OperatingTemperature: -40°C~+85°C
• NumberofPins: 5 Pin
• Length: 24.00mm
• Width: 10.00mm
• Height: 18.80mm
• Rohs: ROHS
• Packaging: TRAY

---

You can click for product datasheet.
