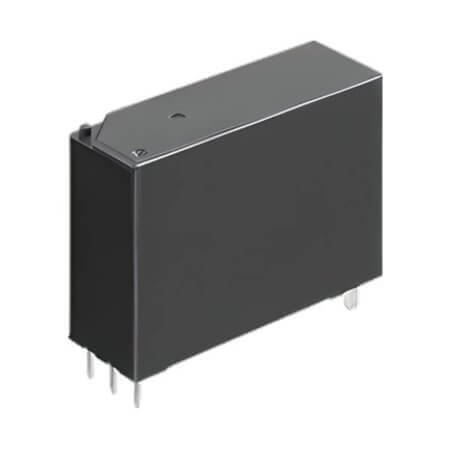

ADJH21012 RELAY GEN PURPOSE SPST 50A 12V

ADJH21012 RELAY GEN PURPOSE SPST 50A 12V Description

ADJH21012 RELAY GEN PURPOSE SPST 50A 12V ADJH21012 is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 480VAC - Max and coil resistance of 144 Ohms. Features a coil power of 1W and operates within a temperature range of -40°C~+85°C.Compact design with dimensions: length 39.00mm, width 15.00mm, and height 30.20mm.Manufactured by PANASONIC COMP. and compliant with ROHS standards. Packaged as TRAY for convenience.

ADJH21012 RELAY GEN PURPOSE SPST 50A 12V Technical Specifications

• Manufacturer: PANASONIC COMP.
• RelayType: Relay Power Latching
• Series: ADJH
• MountingType: THT
• ContactForm: SPST-NO (1 Form A)
• CoilType: Latching, Single Coil
• ContactCurrent(Nom): 25A
• ContactCurrent(Max): 50A
• CoilVoltage: 12VDC
• CoilCurrent: 83.30mA
• ContactVoltage: 480VAC - Max
• CoilResistance: 144 Ohms
• CoilPower: 1W
• OperatingTemperature: -40°C~+85°C
• NumberofPins: 4 Pin
• Length: 39.00mm
• Width: 15.00mm
• Height: 30.20mm
• Rohs: ROHS
• Packaging: TRAY

---

You can click for product datasheet.
