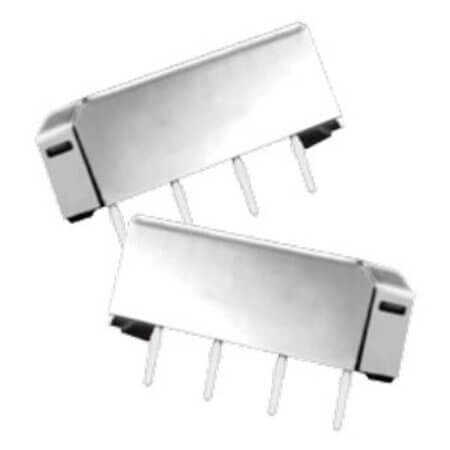

9007-05-00 RELAY REED SPST 500MA 5V

9007-05-00 RELAY REED SPST 500MA 5V Description

9007-05-00 RELAY REED SPST 500MA 5V 9007-05-00 is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 200VAC/200VDC and coil resistance of 500 Ohms. Features a coil power of nan and operates within a temperature range of -20°C~+85°C.Compact design with dimensions: length 19.30mm, width 5.08mm, and height 7.60mm.Manufactured by COTO TECH. and compliant with ROHS standards. Packaged as TUBE for convenience.

9007-05-00 RELAY REED SPST 500MA 5V Technical Specifications

• Manufacturer: COTO TECH.
• RelayType: Relay Reed
• Series: 9007
• MountingType: THT
• ContactForm: SPST-NO (1 Form A)
• CoilType: Non Latching
• ContactCurrent(Nom): 500mA
• ContactCurrent(Max): 1A
• CoilVoltage: 5VDC
• CoilCurrent:
• ContactVoltage: 200VAC/200VDC
• CoilResistance: 500 Ohms
• CoilPower:
• OperatingTemperature: -20°C~+85°C
• NumberofPins: 4 Pin
• Length: 19.30mm
• Width: 5.08mm
• Height: 7.60mm
• Rohs: ROHS
• Packaging: TUBE

---

You can click for product datasheet.
