8-1419111-9 RELAY POWER 6A 60VAC PCB TYPE 14PIN PT570560

8-1419111-9 RELAY POWER 6A 60VAC PCB TYPE 14PIN PT570560 Description

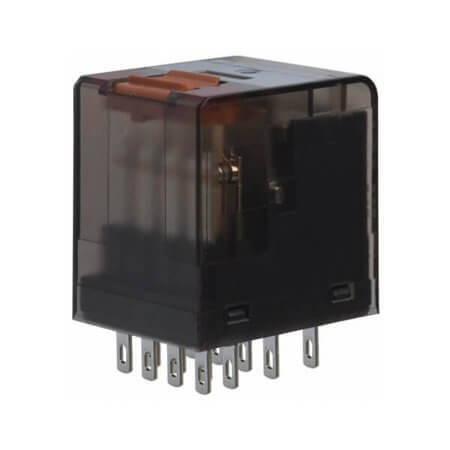

8-1419111-9 RELAY POWER 6A 60VAC PCB TYPE 14PIN PT570560 8-1419111-9 is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 400VAC - Max and coil resistance of 1.30K Ohms. Features a coil power of nan and operates within a temperature range of -40°C~+70°C.Compact design with dimensions: length 28.00mm, width 22.50mm, and height 29.00mm.Manufactured by TE CONNECTIVITY and compliant with ROHS standards. Packaged as BULK for convenience.

8-1419111-9 RELAY POWER 6A 60VAC PCB TYPE 14PIN PT570560 Technical Specifications

• Manufacturer: TE CONNECTIVITY
• RelayType: Relay General
• Series: PT
• MountingType: Socket
• ContactForm: 4PDT (4 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 6A
• ContactCurrent(Max):
• CoilVoltage: 60VAC
• CoilCurrent:
• ContactVoltage: 400VAC - Max
• CoilResistance: 1.30K Ohms
• CoilPower:
• OperatingTemperature: -40°C~+70°C
• NumberofPins: 14 Pin
• Length: 28.00mm
• Width: 22.50mm
• Height: 29.00mm
• Rohs: ROHS
• Packaging: BULK

---

You can click for product datasheet.
