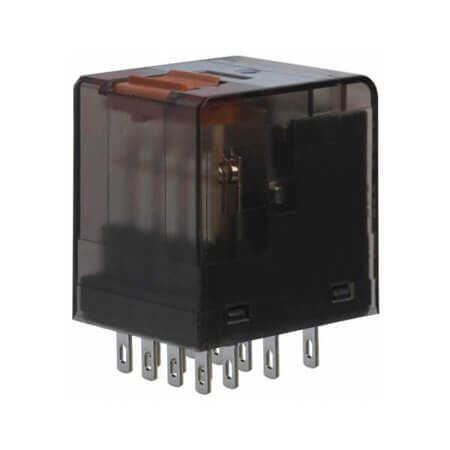

5-1419111-1 RELAY POWER 12A 230VAC PCB TYPE 8PIN PT270730

5-1419111-1 RELAY POWER 12A 230VAC PCB TYPE 8PIN PT270730 Description

5-1419111-1 RELAY POWER 12A 230VAC PCB TYPE 8PIN PT270730 5-1419111-1 is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 400VAC - Max and coil resistance of 19.47K Ohms. Features a coil power of nan and operates within a temperature range of -40°C~+70°C.Compact design with dimensions: length 28.00mm, width 22.50mm, and height 29.00mm.Manufactured by TE CONNECTIVITY and compliant with ROHS standards. Packaged as BULK for convenience.

5-1419111-1 RELAY POWER 12A 230VAC PCB TYPE 8PIN PT270730 Technical Specifications

• Manufacturer: TE CONNECTIVITY
• RelayType: Relay General
• Series: PT
• MountingType: Socket
• ContactForm: DPDT (2 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 12A
• ContactCurrent(Max):
• CoilVoltage: 230VAC
• CoilCurrent:
• ContactVoltage: 400VAC - Max
• CoilResistance: 19.47K Ohms
• CoilPower:
• OperatingTemperature: -40°C~+70°C
• NumberofPins: 8 Pin
• Length: 28.00mm
• Width: 22.50mm
• Height: 29.00mm
• Rohs: ROHS
• Packaging: BULK

---

You can click for product datasheet.
