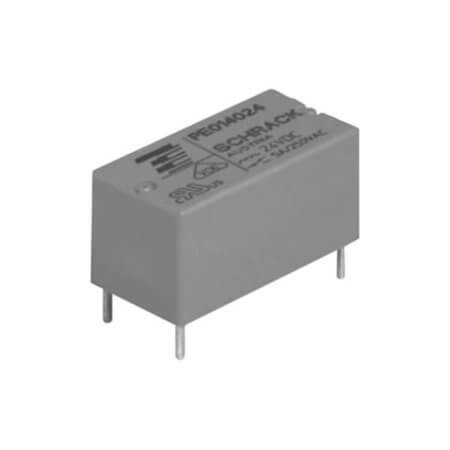

1393219-3 RELAY POWER 5A 5VDC PCB TYPE 5PIN PE014005

1393219-3 RELAY POWER 5A 5VDC PCB TYPE 5PIN PE014005 Description

1393219-3 RELAY POWER 5A 5VDC PCB TYPE 5PIN PE014005 1393219-3 is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 400VAC - Max and coil resistance of 125 Ohms. Features a coil power of 200mW and operates within a temperature range of -40°C~+85°C.Compact design with dimensions: length 20.00mm, width 10.00mm, and height 10.00mm.Manufactured by TE CONNECTIVITY and compliant with ROHS standards. Packaged as TUBE for convenience.

1393219-3 RELAY POWER 5A 5VDC PCB TYPE 5PIN PE014005 Technical Specifications

• Manufacturer: TE CONNECTIVITY
• RelayType: Relay General
• Series: PE
• MountingType: THT
• ContactForm: SPDT (1 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 5A
• ContactCurrent(Max):
• CoilVoltage: 5VDC
• CoilCurrent: 40mA
• ContactVoltage: 400VAC - Max
• CoilResistance: 125 Ohms
• CoilPower: 200mW
• OperatingTemperature: -40°C~+85°C
• NumberofPins: 5 Pin
• Length: 20.00mm
• Width: 10.00mm
• Height: 10.00mm
• Rohs: ROHS
• Packaging: TUBE

---

You can click for product datasheet.
