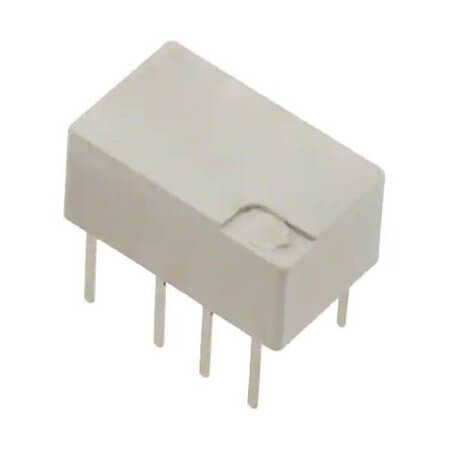

1-1462038-2 RELAY TELECOM 2A 4.5VDC DPDT THT AXICOM

1-1462038-2 RELAY TELECOM 2A 4.5VDC DPDT THT AXICOM Description

1-1462038-2 RELAY TELECOM 2A 4.5VDC DPDT THT AXICOM 1-1462038-2 is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 250VAC/220VDC - Max and coil resistance of 145 Ohms. Features a coil power of 140mW and operates within a temperature range of -40°C~+85°C.Compact design with dimensions: length 10.00mm, width 5.70mm, and height 5.80mm.Manufactured by TE CONNECTIVITY and compliant with ROHS standards. Packaged as TUBE for convenience.

1-1462038-2 RELAY TELECOM 2A 4.5VDC DPDT THT AXICOM Technical Specifications

• Manufacturer: TE CONNECTIVITY
• RelayType: Relay Telecom
• Series: AXICOM IM
• MountingType: THT
• ContactForm: DPDT (2 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 2A
• ContactCurrent(Max):
• CoilVoltage: 4.50VDC
• CoilCurrent: 31.10mA
• ContactVoltage: 250VAC/220VDC - Max
• CoilResistance: 145 Ohms
• CoilPower: 140mW
• OperatingTemperature: -40°C~+85°C
• NumberofPins: 8 Pin
• Length: 10.00mm
• Width: 5.70mm
• Height: 5.80mm
• Rohs: ROHS
• Packaging: TUBE

---

You can click for product datasheet.
