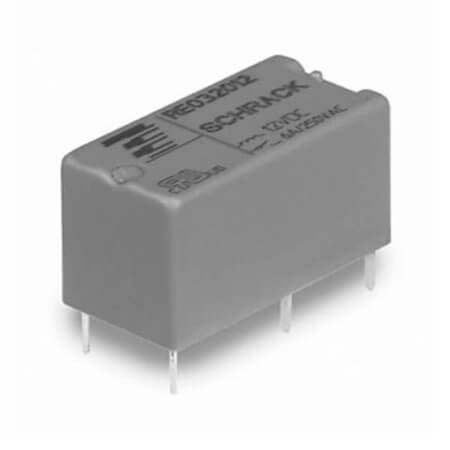

1-1393217-5 RELAY POWER 6A 12VDC SPST-NO THT SCHRACK

1-1393217-5 RELAY POWER 6A 12VDC SPST-NO THT SCHRACK Description

1-1393217-5 RELAY POWER 6A 12VDC SPST-NO THT SCHRACK 1-1393217-5 is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 400VAC - Max and coil resistance of 720 Ohms. Features a coil power of 200mW and operates within a temperature range of -40°C~+70°C.Compact design with dimensions: length 20.00mm, width 10.00mm, and height 16.00mm.Manufactured by TE CONNECTIVITY and compliant with ROHS standards. Packaged as BULK for convenience.

1-1393217-5 RELAY POWER 6A 12VDC SPST-NO THT SCHRACK Technical Specifications

• Manufacturer: TE CONNECTIVITY
• RelayType: Relay Power
• Series: RE
• MountingType: THT
• ContactForm: SPST-NO (1 Form A)
• CoilType: Non Latching
• ContactCurrent(Nom): 6A
• ContactCurrent(Max):
• CoilVoltage: 12VDC
• CoilCurrent: 16.70mA
• ContactVoltage: 400VAC - Max
• CoilResistance: 720 Ohms
• CoilPower: 200mW
• OperatingTemperature: -40°C~+70°C
• NumberofPins: 4 Pin
• Length: 20.00mm
• Width: 10.00mm
• Height: 16.00mm
• Rohs: ROHS
• Packaging: BULK

---

You can click for product datasheet.
