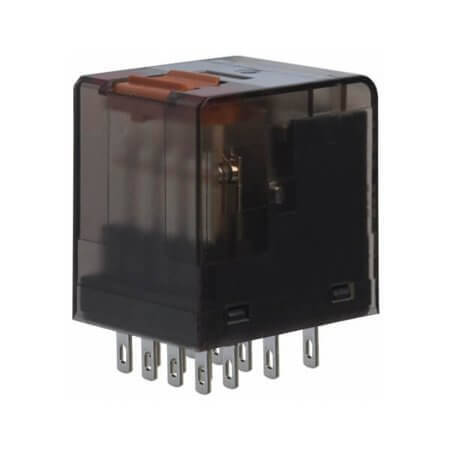

1-1393154-2 RELAY POWER 6A 24VDC PCB TYPE 14PIN PT570024

1-1393154-2 RELAY POWER 6A 24VDC PCB TYPE 14PIN PT570024 Description

1-1393154-2 RELAY POWER 6A 24VDC PCB TYPE 14PIN PT570024 1-1393154-2 is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 240VAC - Max and coil resistance of 777 Ohms. Features a coil power of 741mW and operates within a temperature range of -40°C~+70°C.Compact design with dimensions: length 28.00mm, width 22.50mm, and height 29.00mm.Manufactured by TE CONNECTIVITY and compliant with ROHS standards. Packaged as BULK for convenience.

1-1393154-2 RELAY POWER 6A 24VDC PCB TYPE 14PIN PT570024 Technical Specifications

• Manufacturer: TE CONNECTIVITY
• RelayType: Relay General
• Series: PT
• MountingType: Socket
• ContactForm: 4PDT (4 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 6A
• ContactCurrent(Max):
• CoilVoltage: 24VDC
• CoilCurrent: 30.80mA
• ContactVoltage: 240VAC - Max
• CoilResistance: 777 Ohms
• CoilPower: 741mW
• OperatingTemperature: -40°C~+70°C
• NumberofPins: 14 Pin
• Length: 28.00mm
• Width: 22.50mm
• Height: 29.00mm
• Rohs: ROHS
• Packaging: BULK

---

You can click for product datasheet.
