Pressure Sensor Analog Circuit For FSR400/FSR402/FSR406/FSR408

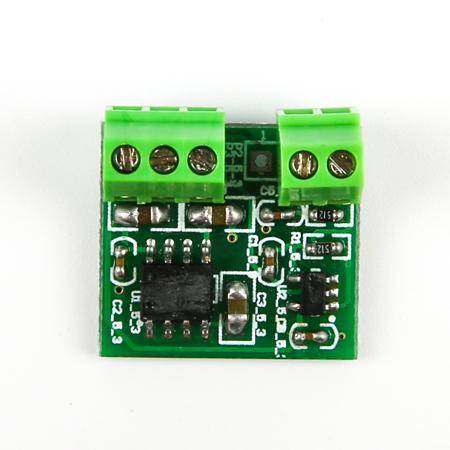

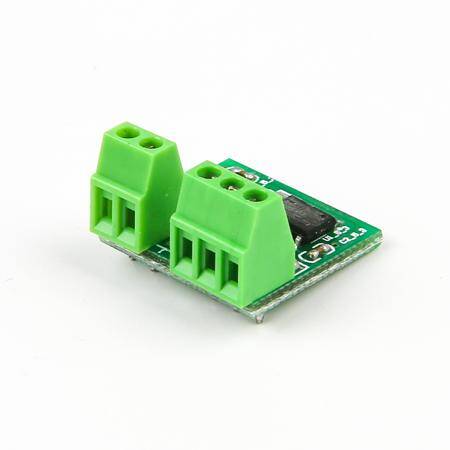

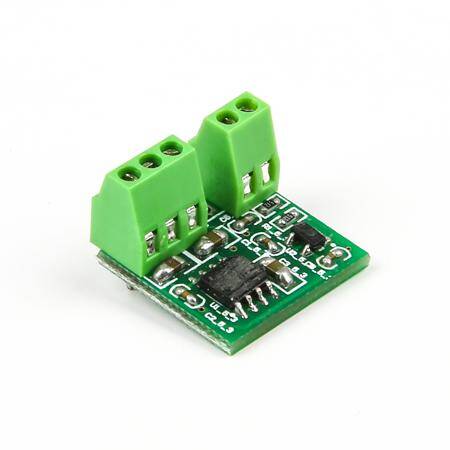

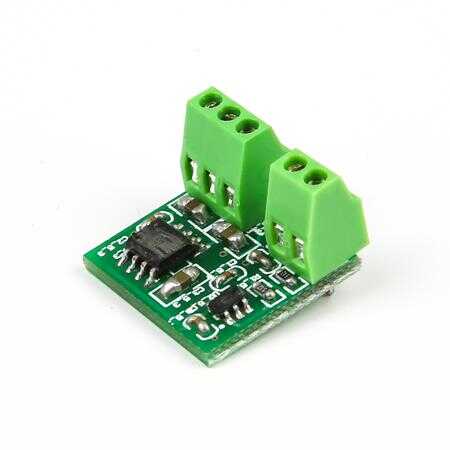

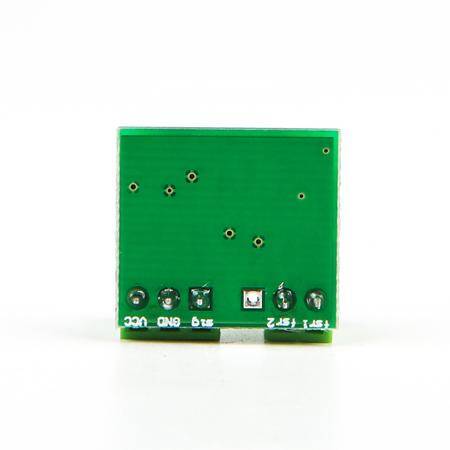

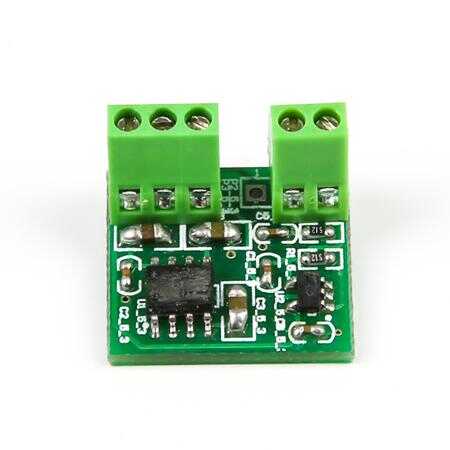

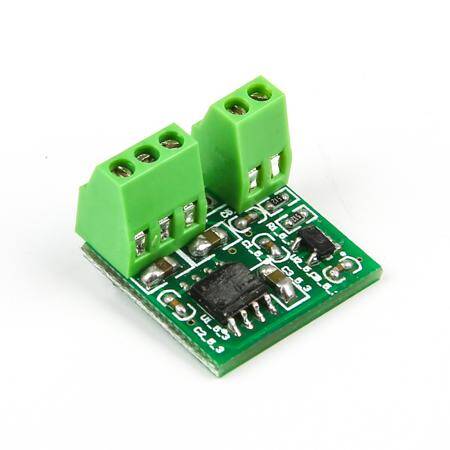

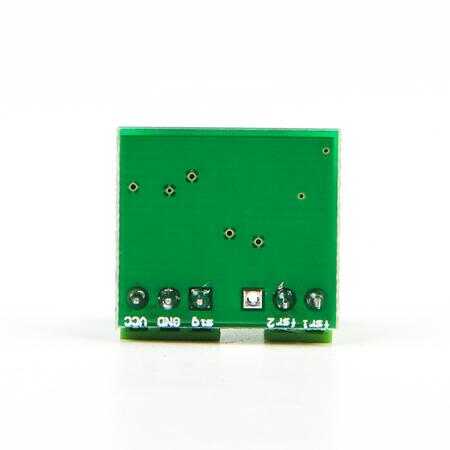

Pressure Sensor Analog Circuit Description

The Pressure Sensor Analog Circuit is a versatile circuit designed to interface with a variety of force-sensitive resistors (FSRs), including FSR400, FSR402, FSR406, and FSR408. This circuit is used to convert the variable resistance from the FSRs into an analog output signal, which can then be processed by a microcontroller or other data acquisition systems. The circuit is ideal for integrating pressure sensing into projects that require high-precision force detection and is widely used in robotics, medical applications, and interactive systems.

Pressure Sensor Analog Circuit Features

• Wide Compatibility: Works with a range of FSRs, including FSR400, FSR402, FSR406, and FSR408 for flexible application integration.
• Analog Output: Provides a smooth analog output that can be easily processed by microcontrollers for real-time monitoring.
• Easy Integration: Designed for simple integration into projects involving pressure sensing and force measurement.
• Cost-Effective: An affordable solution for creating pressure-sensitive applications without the need for complex circuitry.
• Low Power: Efficient in terms of power consumption, ideal for use in portable and battery-operated systems.

Pressure Sensor Analog Circuit Specifications

• Compatible FSR Models: FSR400, FSR402, FSR406, FSR408
• Output: Analog voltage corresponding to the pressure applied to the FSR
• Operating Voltage: Typically 3.3V to 5V DC

Pressure Sensor Analog Circuit Applications

• Force Sensing Systems: Ideal for projects that need to measure force or pressure in robotics, automation, and testing setups.
• Medical Devices: Can be used in medical applications for monitoring pressure points or detecting force in prosthetics.
• Interactive Systems: Perfect for touch-sensitive controls, switches, or interactive installations that require pressure detection.
