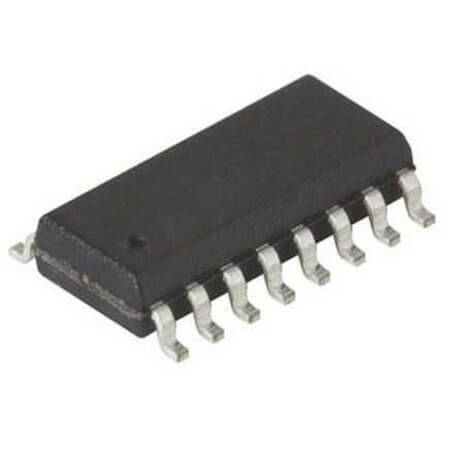

ULN2003AFWG-TOS IC-2003 DRIVER (HAMMER,LAMP,RELAY)7CHN. SOL16 TR

ULN2003AFWG-TOS IC-2003 DRIVER (HAMMER,LAMP,RELAY)7CHN. SOL16 TR Description

ULN2003AFWG-TOS IC-2003 DRIVER (HAMMER,LAMP,RELAY)7CHN. SOL16 TR ULN2003AFWG-TOS is a high-performance transistor array, featuring 7 Channels Darlington Sink Driver. With a maximum collector-emitter voltage of 50V and a current rating of 500mA, it ensures reliable operation in demanding applications. The device supports 7/-/7 channels and offers a power dissipation of 1.25 Watt. Designed for SMT mounting, it is available in a SOL16 package. The operating temperature range is -40°C~+85°C, and it complies with ROHS standards, making it suitable for various electronic designs. Packaged in TAPE&REEL for ease of use.

ULN2003AFWG-TOS IC-2003 DRIVER (HAMMER,LAMP,RELAY)7CHN. SOL16 TR Technical Specifications

• Manufacturer: TOSHIBA
• Features: 7 Channels Darlington Sink Driver
• MountingType: SMT
• Package/Case: SOL16
• CollectorEmitterVoltage(Max): 50V
• CollectorCurrent(Max): 500mA
• PowerDissipation: 1.25 Watt
• NumberofDrivers/Receivers/Channels: 7/-/7
• OperatingTemperature: -40°C~+85°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
