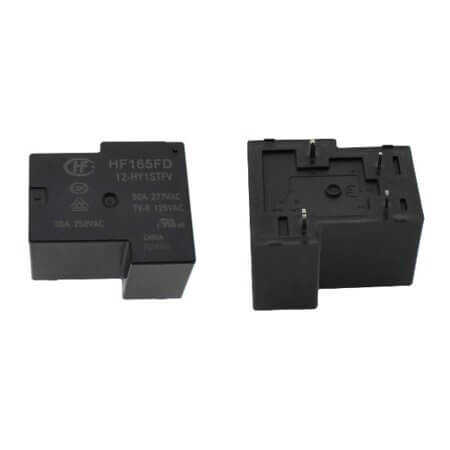

HF165FD/12-HY1STFV RELAY POWER 30A 12VDC SPST-NO THT

HF165FD/12-HY1STFV RELAY POWER 30A 12VDC SPST-NO THT Description

HF165FD/12-HY1STFV RELAY POWER 30A 12VDC SPST-NO THT HF165FD/12-HY1STFV is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 277VAC and coil resistance of 155 Ohms. Features a coil power of 900mW and operates within a temperature range of -40°C~+85°C.Compact design with dimensions: length 32.20mm, width 27.50mm, and height 20.40mm.Manufactured by HONGFA and compliant with ROHS standards. Packaged as TRAY for convenience.

HF165FD/12-HY1STFV RELAY POWER 30A 12VDC SPST-NO THT Technical Specifications

• Manufacturer: HONGFA
• RelayType: Relay Power
• Series: HF165FD
• MountingType: THT
• ContactForm: SPST-NO (1 Form A)
• CoilType: Non Latching
• ContactCurrent(Nom): 30A
• ContactCurrent(Max):
• CoilVoltage: 12VDC
• CoilCurrent:
• ContactVoltage: 277VAC
• CoilResistance: 155 Ohms
• CoilPower: 900mW
• OperatingTemperature: -40°C~+85°C
• NumberofPins: 4 Pin
• Length: 32.20mm
• Width: 27.50mm
• Height: 20.40mm
• Rohs: ROHS
• Packaging: TRAY

---

You can click for product datasheet.
