PU35CL1.0 LED SMD 3535 UVC 270-290nm min.1.8mW@20mA(6V 30mA)

PU35CL1.0 LED SMD 3535 UVC 270-290nm min.1.8mW@20mA(6V 30mA) Description

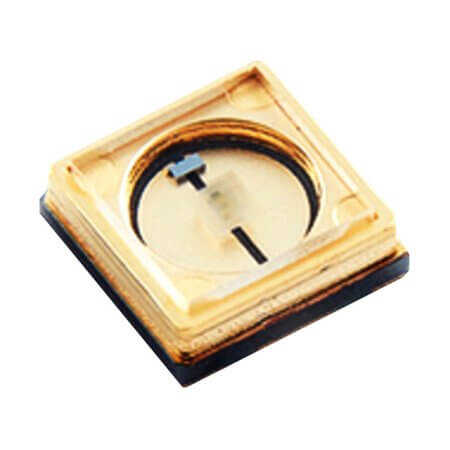

PU35CL1.0 LED SMD 3535 UVC 270-290nm min.1.8mW@20mA(6V 30mA) The PU35CL1.0, manufactured by LEXTAR, is a high-quality ultraviolet LED designed for led smd 3535 uvc 270-290nm min.1.8mw@20ma(6v 30ma). It operates at a forward current of 30mA with a thermal resistance of 20°C/W, providing reliable performance. The LED features a viewing angle of 125°, and its dimensions are 3.50mm x 3.50mm x 1.45mm. The LED performs efficiently within a temperature range of -30°C~+60°C. As a rohs-compliant product, it meets stringent environmental standards. Packaged in tape&reel format, it ensures secure handling and storage. With its robust design and advanced features, the PU35CL1.0 is an excellent choice for professionals seeking efficient and durable ultraviolet LED solutions.

PU35CL1.0 LED SMD 3535 UVC 270-290nm min.1.8mW@20mA(6V 30mA) Technical Specifications

• Manufacturer: LEXTAR
• Color: UVC
• TypebyPower: Mid Power
• MountingType: SMT
• Package/Case: 3535
• MountingStyle: Top view
• LensType: Flat
• Series:
• MaxPower: 180mW
• Wavelength: 278nm
• RadiantFlux(25°C)@TestCurrent: 2.40mW
• ForwardVoltage(25°C)@TestCurrent: 6.00V
• TestCurrent: 20mA
• ForwardCurrent: 30mA
• ThermalResistance: 20°C/W
• ViewAngle: 125°
• Diameter:
• Length: 3.50mm
• Width: 3.50mm
• Height: 1.45mm
• OperatingTemperature: -30°C~+60°C
• Rohs: ROHS
• TAPE&REEL: TAPE&REEL

---

You can click for product datasheet.
